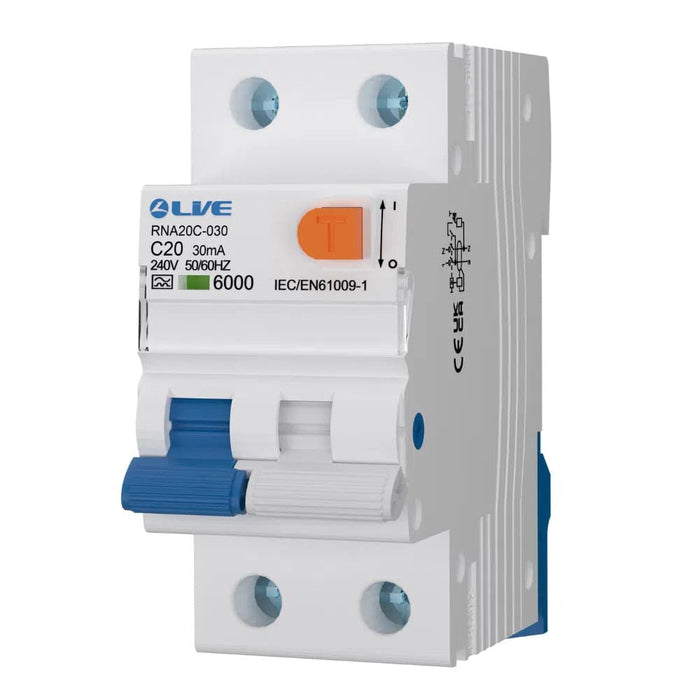

LIVE Electrical RNA20C-030 20A Double Pole C Curve Type A Bidirectional RCBO

The LIVE Electrical RNA20C-030 is a robust 20A double pole RCBO designed to provide effective protection against overloads, short circuits and residual current faults. With a C curve tripping characteristic and 30mA sensitivity, this device is well suited to circuits with moderate inrush currents, ensuring reliable safety across residential and commercial installations.

Engineered as a twin switch Type A RCBO, the RNA20C-030 supports bidirectional operation and is compatible with 230V AC systems. Its 6kA breaking capacity and durable construction make it a dependable choice for modern distribution boards requiring long-term performance and compliance.

Key Features

• 20A rated current
• Double pole (2P) configuration
• C curve tripping characteristic
• 30mA residual current protection
• Type A device – detects AC and pulsating DC faults
• Bidirectional operation
• Twin switch design for safe isolation
• 6kA breaking capacity
• Suitable for 230V AC installations
• Terminal capacity up to 16mm²
• Electrical endurance: 4,000 cycles
• Mechanical endurance: 100,000 cycles
• Compliant with BS EN 61009-1

Technical Specification

• Model: RNA20C-030
• Brand: LIVE Electrical
• Rated current: 20A
• Rated voltage: 230V AC
• Breaking capacity: 6kA
• Rated residual current: 30mA
• Pole configuration: 2P
• Tripping characteristic: C curve
• Type: Type A
• Terminal capacity: 16mm²
• Compliance: BS EN 61009-1
