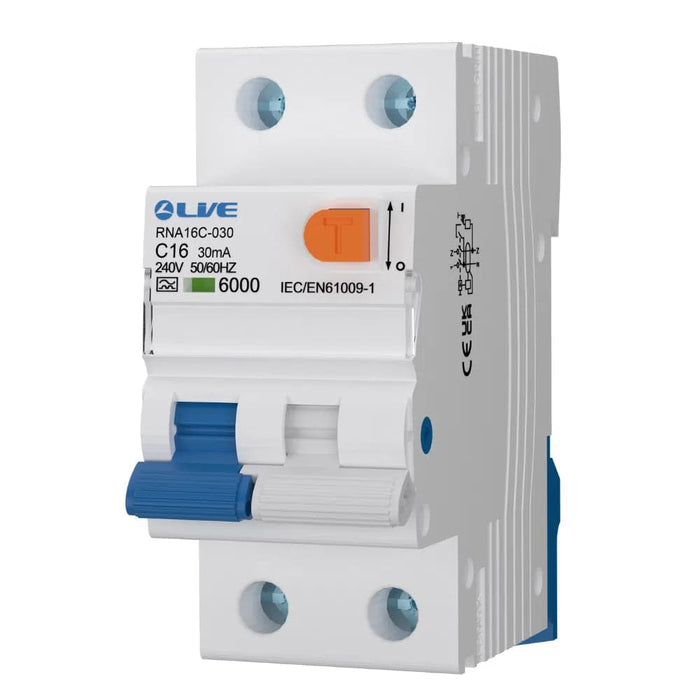

LIVE Electrical RNA16C-030 16A Double Pole C Curve Type A Bidirectional RCBO

The LIVE Electrical RNA16C-030 is a reliable 16A double pole RCBO designed to protect electrical circuits against overloads, short circuits and residual current faults. Featuring a C curve tripping characteristic and 30mA sensitivity, this device is ideal for applications with moderate inrush currents, ensuring both safety and performance in domestic and commercial installations.

Manufactured as a twin switch Type A RCBO, the RNA16C-030 supports bidirectional operation and is suitable for use on 230V AC systems. With a 6kA breaking capacity and strong durability, it offers long-lasting protection and dependable operation within distribution boards.

Key Features

• 16A rated current
• Double pole (2P) RCBO
• C curve tripping characteristic
• 30mA residual current protection
• Type A device – detects AC and pulsating DC faults
• Bidirectional capability
• Twin switch design for enhanced isolation
• 6kA breaking capacity
• Designed for 230V AC systems
• Terminal capacity up to 16mm²
• Electrical endurance of 4,000 cycles
• Mechanical endurance of 100,000 cycles
• Complies with BS EN 61009-1 standards

Technical Specification

• Model: RNA16C-030
• Brand: LIVE Electrical
• Rated current: 16A
• Rated voltage: 230V AC
• Breaking capacity: 6kA
• Rated residual current: 30mA
• Pole configuration: 2P
• Tripping characteristic: C curve
• Type: Type A
• Terminal capacity: 16mm²
• Compliance: BS EN 61009-1

Data Sheet: Download the RNA16C-030 data sheet

LIVE Electrical Catalogue: View the LIVE Electrical catalogue
