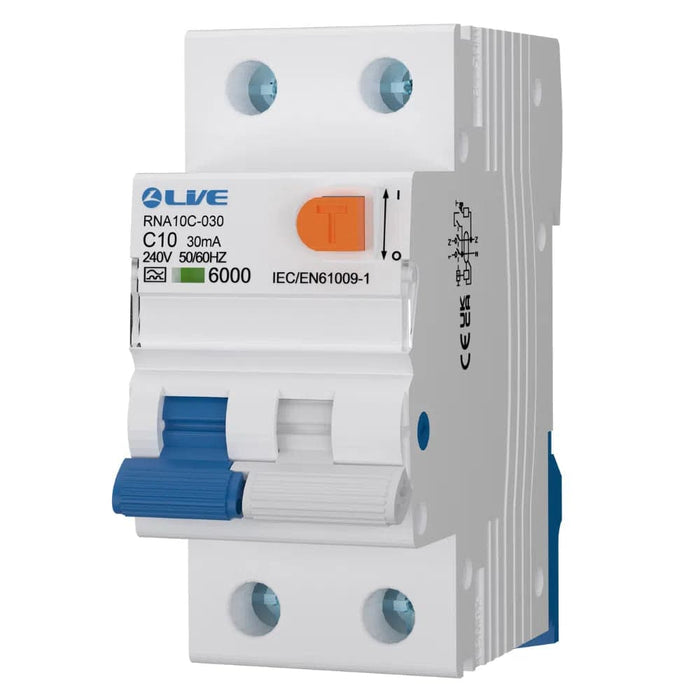

LIVE Electrical RNA10C-030 10A Double Pole C Curve Type A Bidirectional RCBO

The LIVE Electrical RNA10C-030 is a high-performance 10A double pole RCBO engineered to deliver dependable protection against overloads, short circuits and earth leakage faults. With a C curve tripping characteristic and 30mA sensitivity, this device is ideal for safeguarding modern electrical circuits in domestic, commercial and light industrial installations.

Designed as a twin switch Type A RCBO, the RNA10C-030 supports bidirectional operation and is suitable for 230V AC systems. Its robust 6kA breaking capacity, combined with long electrical and mechanical endurance, ensures reliable performance and long service life in demanding environments.

Key Features

• 10A rated current
• Double pole (2P) configuration
• C curve tripping characteristic for moderate inrush currents
• 30mA residual current sensitivity for enhanced protection
• Type A RCBO suitable for AC and pulsating DC fault detection
• Bidirectional functionality
• Twin switch design for improved isolation
• 6kA breaking capacity
• Rated for 230V AC systems
• Terminal capacity up to 16mm²
• Electrical endurance: 4,000 cycles
• Mechanical endurance: 100,000 cycles
• Manufactured in accordance with BS EN 61009-1

Technical Specification

• Model: RNA10C-030
• Brand: LIVE Electrical
• Rated current: 10A
• Rated voltage: 230V AC
• Breaking capacity: 6kA
• Rated residual current: 30mA
• Pole configuration: 2P
• Tripping characteristic: C curve
• Type: Type A
• Terminal capacity: 16mm²
• Compliance: BS EN 61009-1
