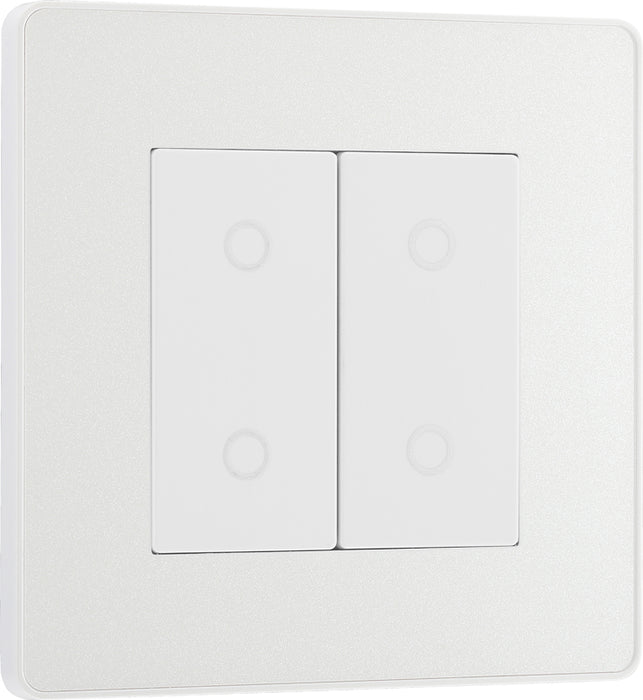

BG Evolve PCDCLTDS2W 2-Way Secondary 200W Double Touch Dimmer Switch - Pearlescent White (White)

E V O L V E - A new generation of decorative modern wiring devices, available in the latest colours and finishes.

These modern and stylish switches and sockets are the latest addition to the BG Decorative Wiring Accessory portfolio. Designed with a slim, screwless profile, this comprehensive range offers a complete solution for any domestic or commercial application.

The latest innovations from BG, including fast charging TYPE-C USB wall socket, LED touch dimmers and WiFi extenders, are all included in a range that offers the widest range of colours and finishes available.

BG Evolve Screwless is available in following finishes

1. Black Chrome
2. Brushed Steel
3. Pearlescent White
4. Polished Copper
5. Matt Black
6. Matt Blue
7. Matt Grey
8. Satin Brass

This item is Double 2 Way Secondary

• Frame & Module Colour - White
• Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
• Soft start brings the lights to a set level in around 1 second and extends the life of lamps
• Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
• Smooth dimming control
• Silent operation - no noise when dimming
• Support for lower wattage lamps eliminates flicker
• Touch dimmer control
• Captive backed out terminal screws prevent screw loss
• Silent operation - no noise when dimming
• Manufactured to BS EN 60669-2-1
• Terminal capacity 3x1.0mm², 2x1.5mm² & 1x2.5mm²
• Minimum mounting box depth - 25mm

Load Rating (Max/Min per module)

• Dimmable LED 5-100W
• Tungsten/Incandescent 5-200W
• Halogen 20-200W
• Dimmable Compact Fluorescent (CFL) 5-100W

Installation Note

• Master can only be used in a one way switching circuit where one switch controls a light (or circuit) i.e. on or off.
• For two way switching, where a light (or circuit) is controlled by two switches, the master touch dimmer must be used with a secondary touch dimmer at the secondary location.
• A master touch dimmer cannot be used in combination with a traditional light switch or any other dimmer switch.

Brochure:

Click Here for BG Evolve Brochure
