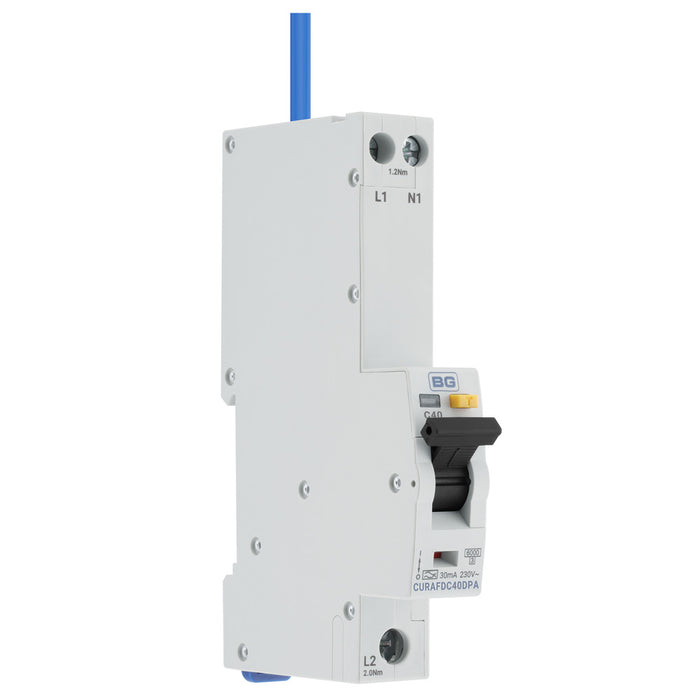

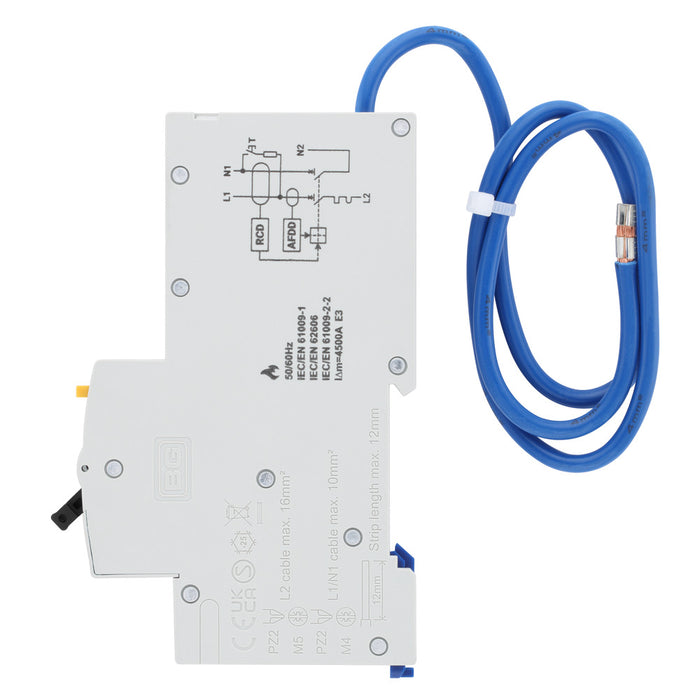

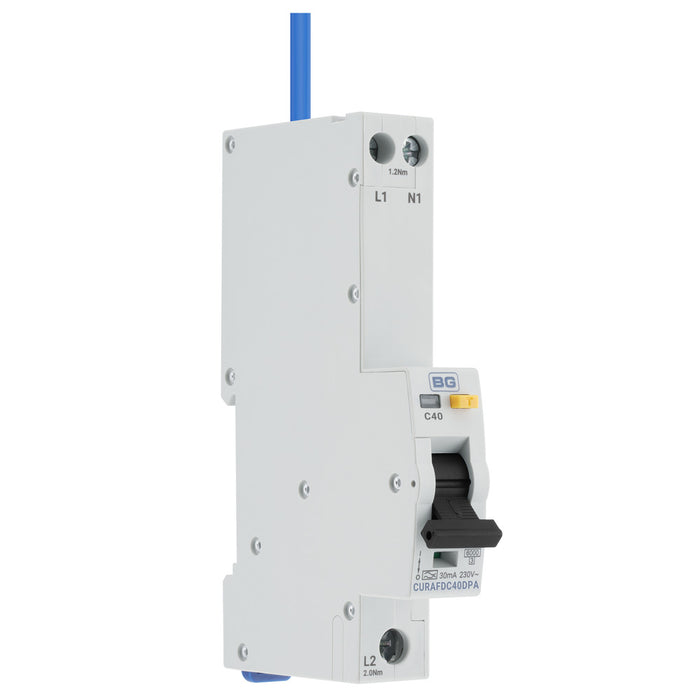

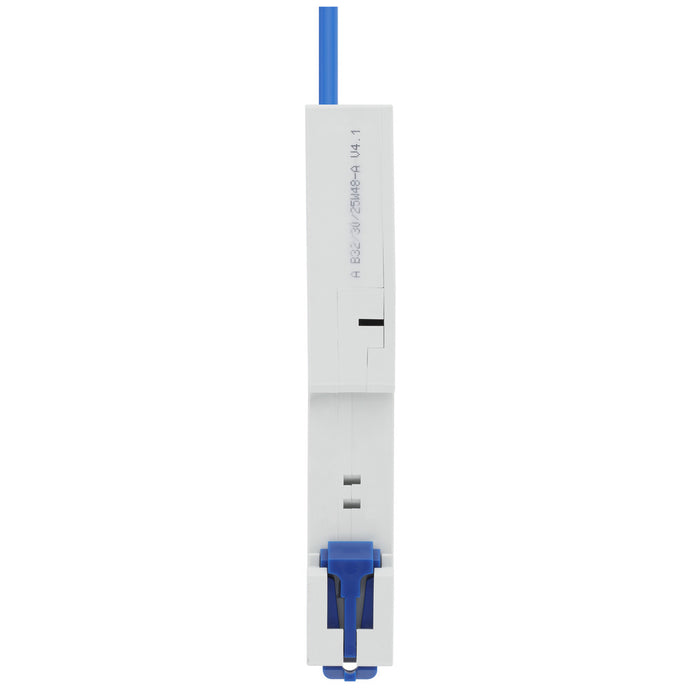

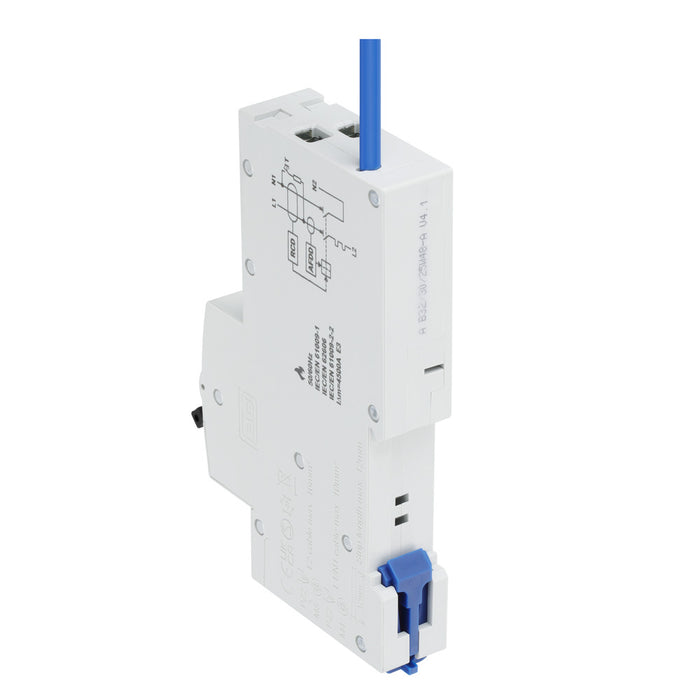

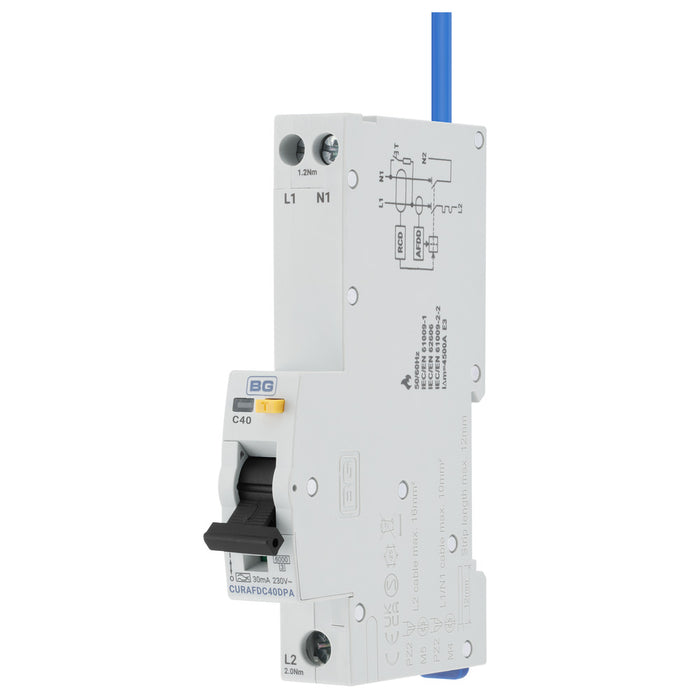

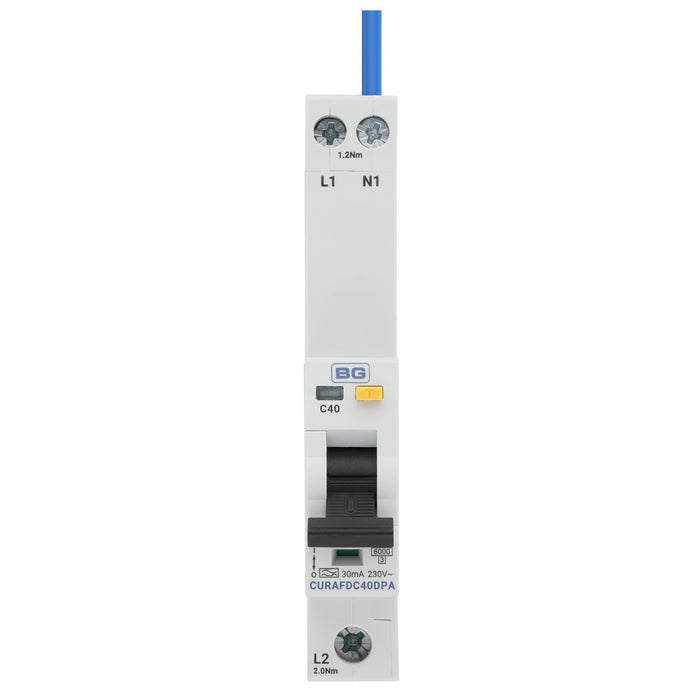

BG CURAFDC40DPA 40A 30mA Type A Bi-Directional AFDD RCBO (C Curve)

The BG CURAFDC40DPA is a high-capacity 40A single module double pole AFDD RCBO with a C curve tripping characteristic, designed specifically for use with BG Fortress consumer units. This advanced protective device combines arc fault detection with overload, short circuit and earth leakage protection, providing comprehensive circuit safety in a compact format.

Featuring Type A protection and bi-directional operation, it detects hazardous arc faults that could lead to electrical fires while ensuring reliable performance under normal and fault conditions. With a 30mA residual current sensitivity and 6kA breaking capacity, this device is ideal for circuits with higher inrush currents and demanding applications.

Key Features

• 40A single module AFDD RCBO
• Double pole switching for complete circuit isolation
• Type A protection
• Bi-directional functionality
• Combined AFDD and RCBO protection
• C curve tripping characteristic
• 30mA residual current sensitivity
• 6kA breaking capacity
• Positive contact status indication
• Designed for BG Fortress consumer units

Applications

Suitable for higher load circuits requiring enhanced protection against arc faults, overloads, short circuits and earth leakage, particularly within BG Fortress consumer units in domestic and commercial installations.
