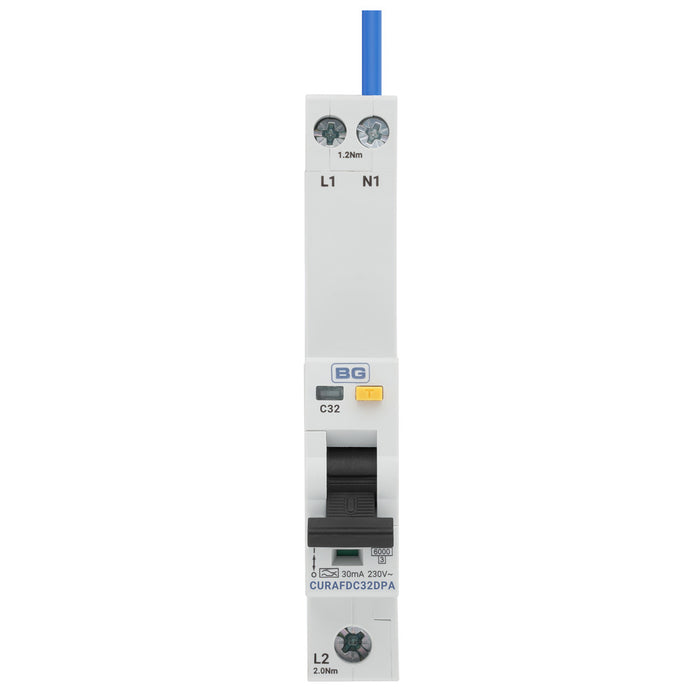

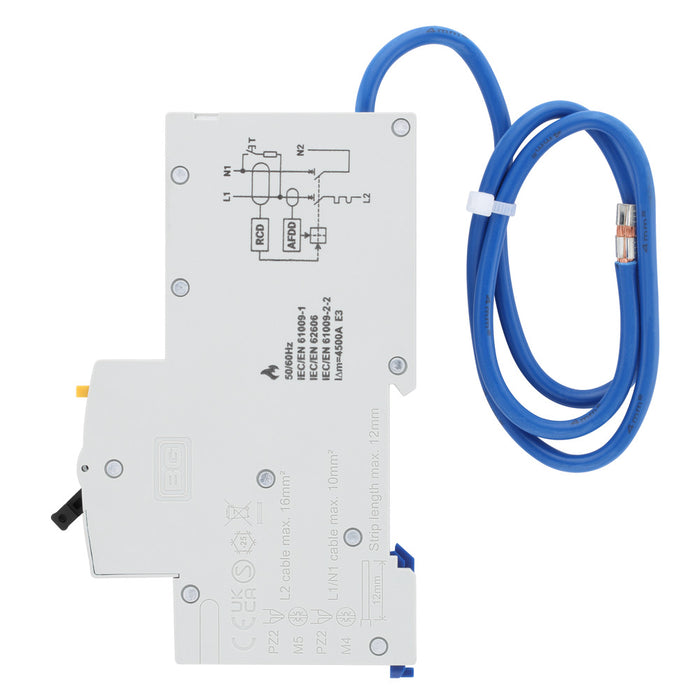

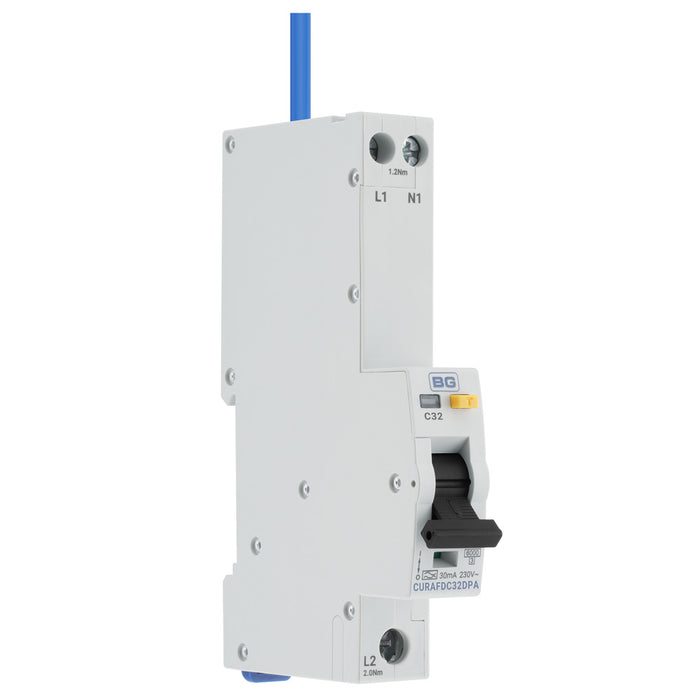

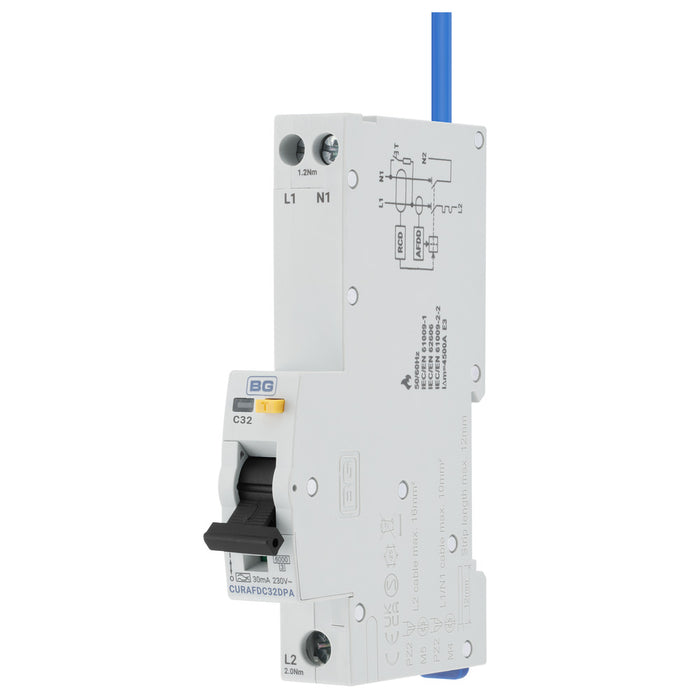

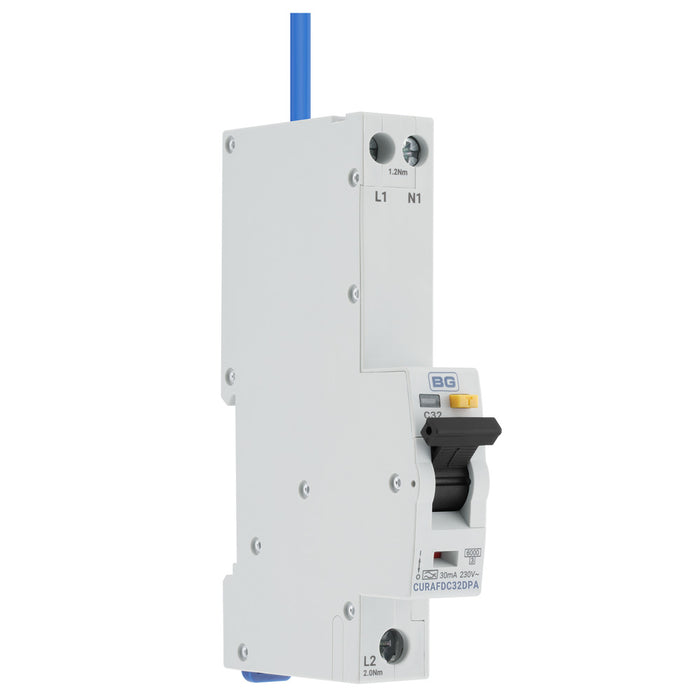

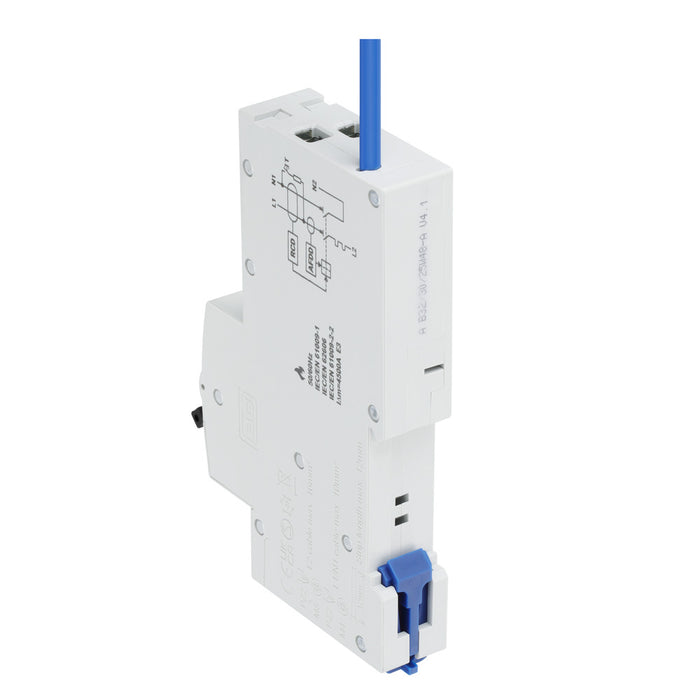

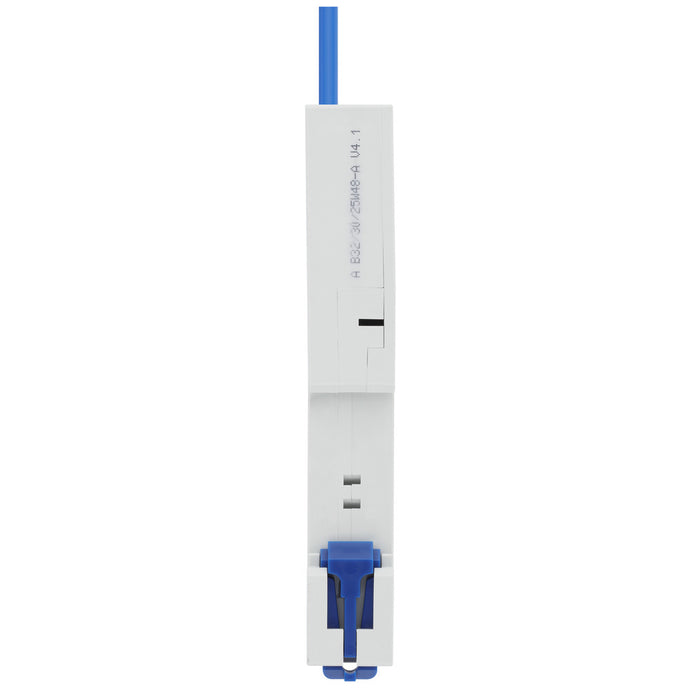

BG CURAFDC32DPA 32A 30mA Type A Bi-Directional AFDD RCBO (C Curve)

The BG CURAFDC32DPA is a powerful 32A single module double pole AFDD RCBO featuring a C curve tripping characteristic, designed for seamless integration with BG Fortress consumer units. This all-in-one device provides advanced arc fault detection alongside overload, short circuit and earth leakage protection, delivering enhanced electrical safety.

Built with Type A protection and bi-directional functionality, it detects dangerous arc faults that could lead to electrical fires while maintaining consistent circuit protection. With a 30mA residual current sensitivity and 6kA breaking capacity, this unit is ideal for circuits with higher inrush currents, including those with inductive loads.

Key Features

• 32A single module AFDD RCBO
• Double pole switching for full circuit isolation
• Type A protection
• Bi-directional operation
• Combined AFDD and RCBO protection
• C curve tripping characteristic
• 30mA residual current sensitivity
• 6kA breaking capacity
• Positive contact status indication
• Compatible with BG Fortress consumer units

Applications

Ideal for circuits with higher inrush currents requiring reliable protection against arc faults, overloads, short circuits and earth leakage, particularly within BG Fortress consumer units in domestic and commercial environments.
