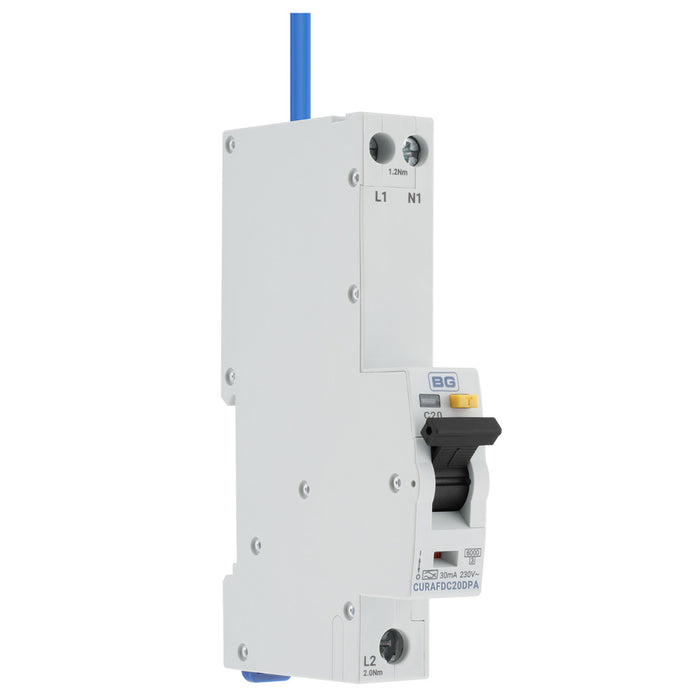

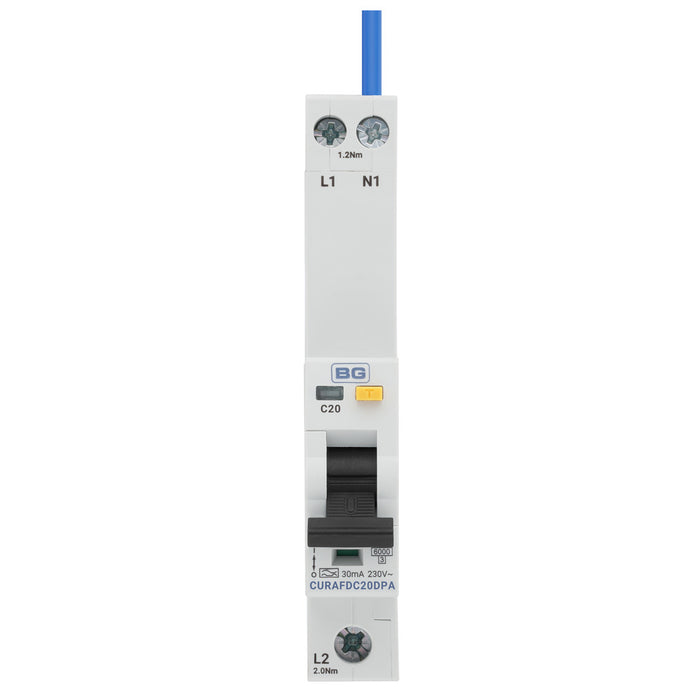

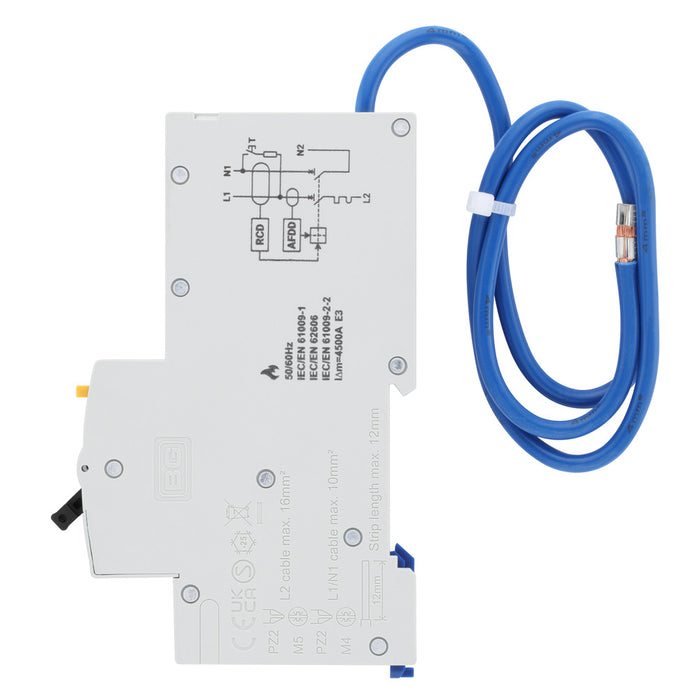

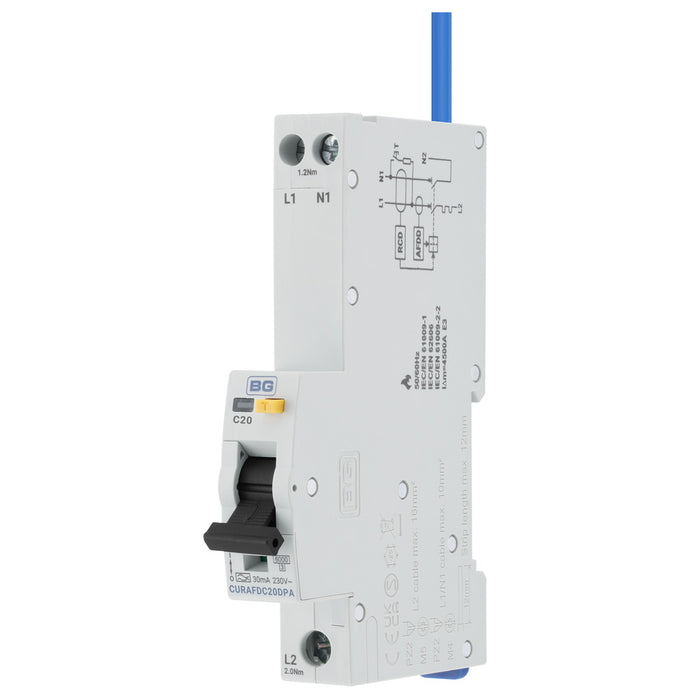

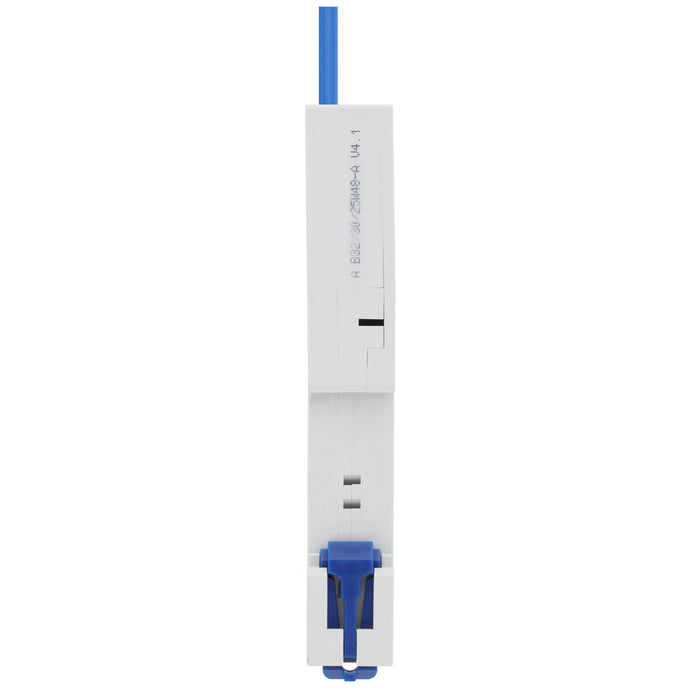

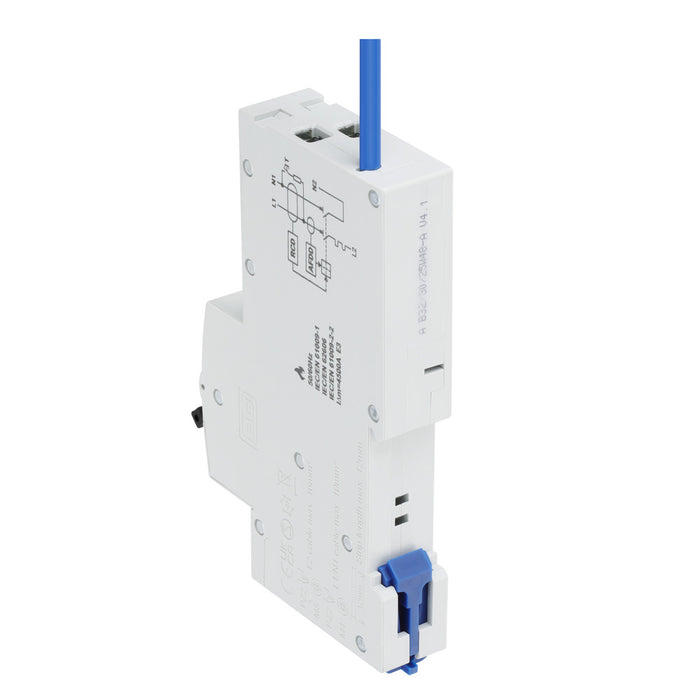

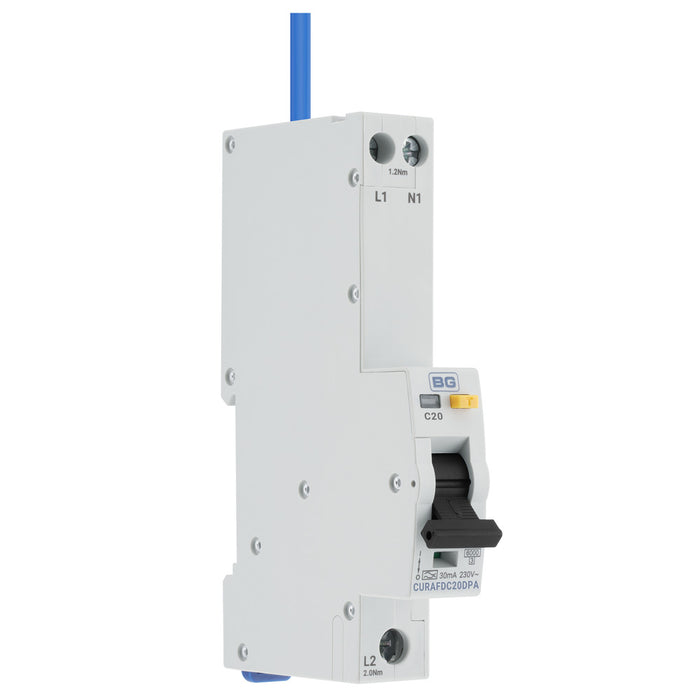

BG CURAFDC20DPA 20A 30mA Type A Bi-Directional AFDD RCBO (C Curve)

The BG CURAFDC20DPA is a dependable 20A single module double pole AFDD RCBO with a C curve tripping characteristic, designed for use with BG Fortress consumer units. This advanced device combines arc fault detection with overload, short circuit and earth leakage protection, helping to enhance electrical safety in modern installations.

Featuring Type A protection and bi-directional capability, it effectively detects hazardous arc faults that could lead to electrical fires while ensuring reliable circuit performance. With a 30mA residual current sensitivity and 6kA breaking capacity, this unit is ideal for circuits with higher inrush currents, such as inductive loads.

Key Features

• 20A single module AFDD RCBO
• Double pole switching for full circuit isolation
• Type A protection
• Bi-directional operation
• Combined AFDD and RCBO functionality
• C curve tripping characteristic
• 30mA residual current sensitivity
• 6kA breaking capacity
• Positive contact status indication
• Designed for BG Fortress consumer units

Applications

Suitable for circuits with higher inrush currents requiring reliable protection against arc faults, overloads, short circuits and earth leakage within BG Fortress consumer units.
