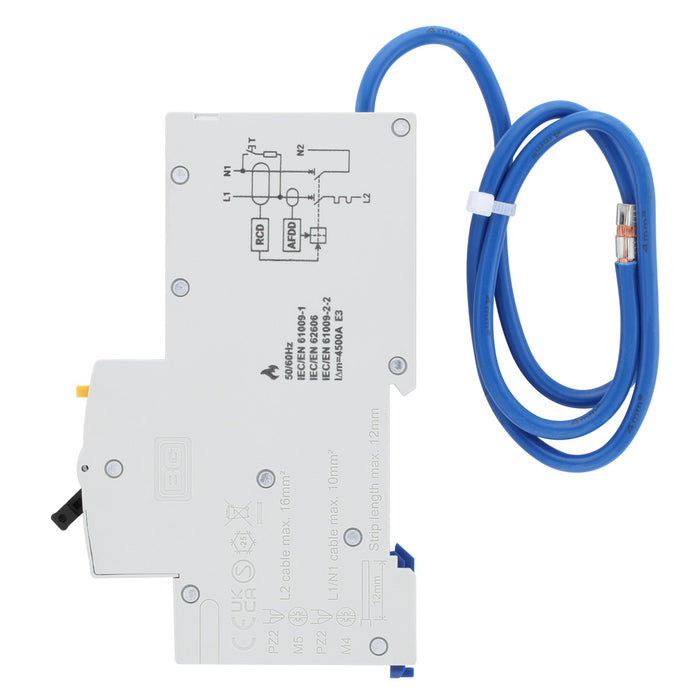

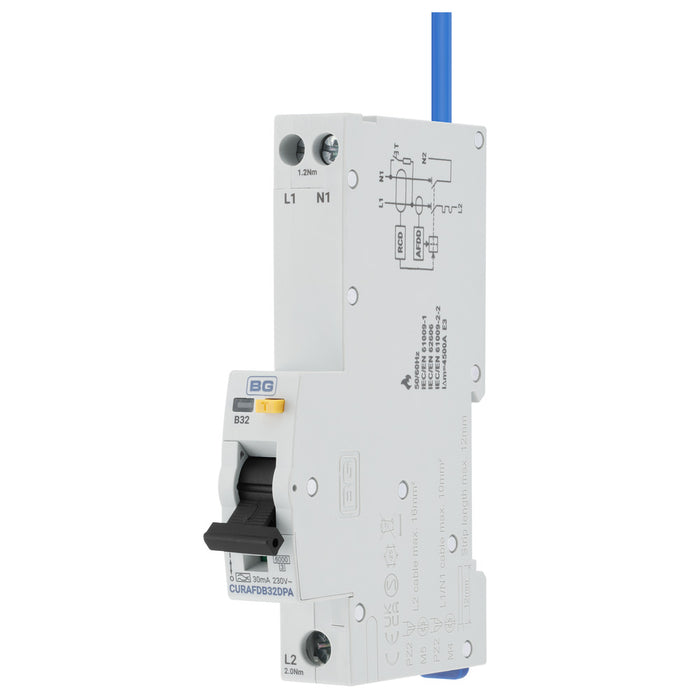

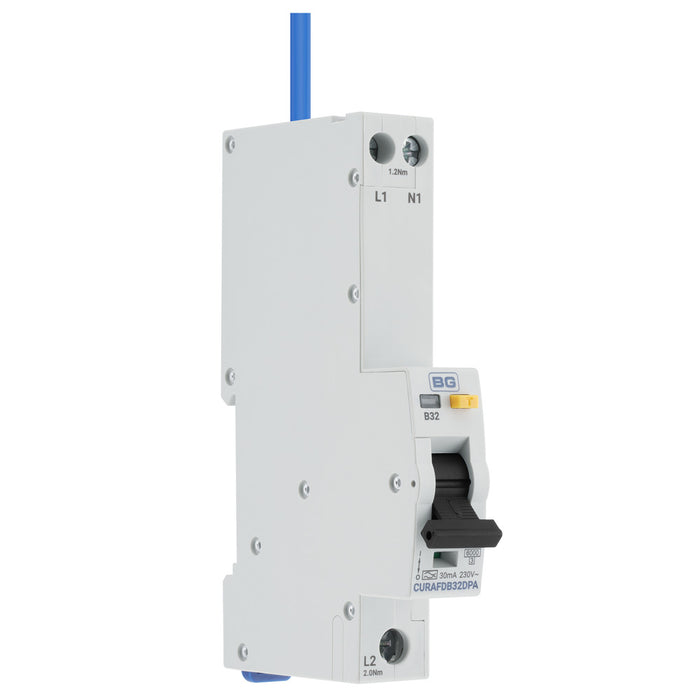

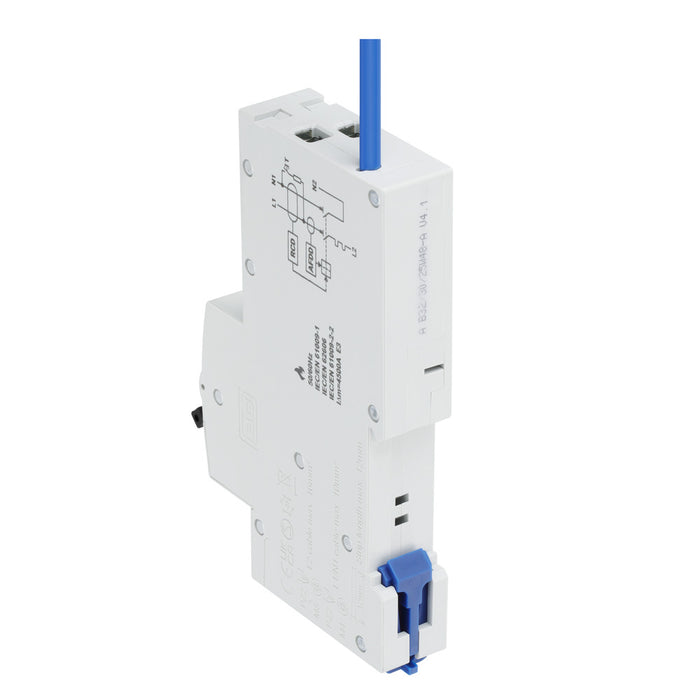

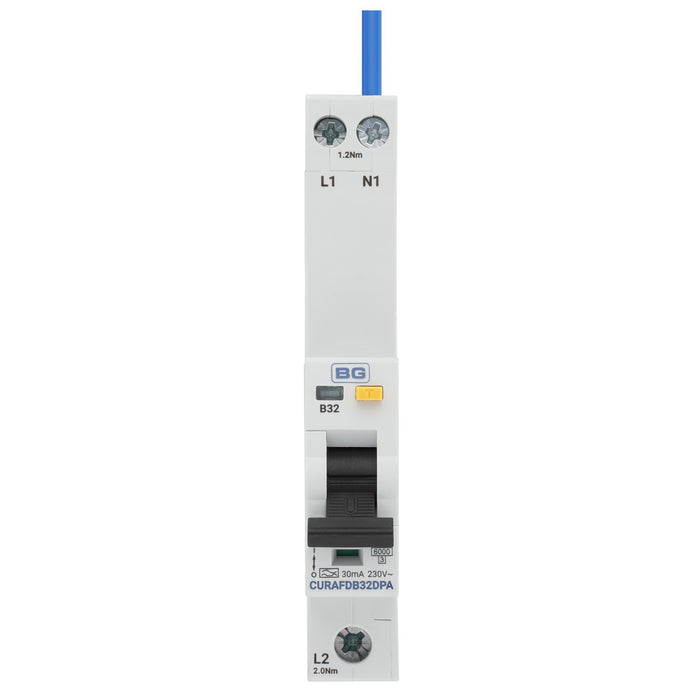

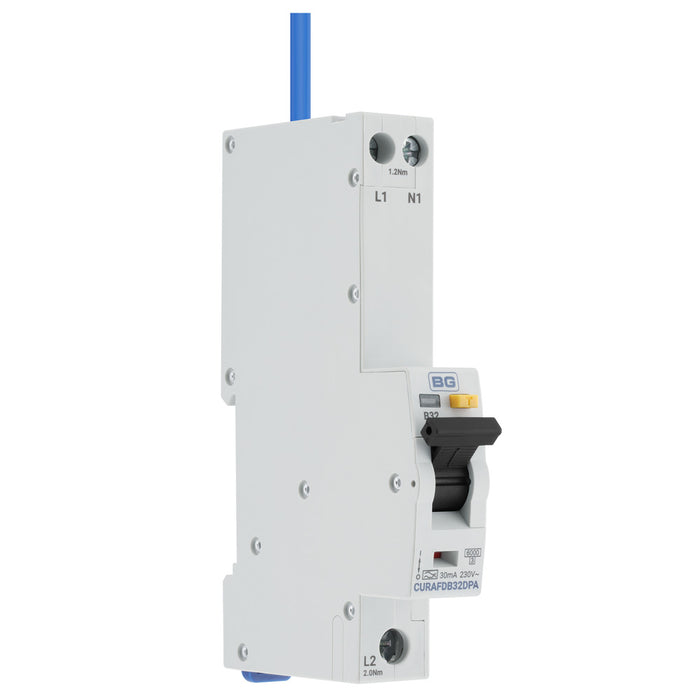

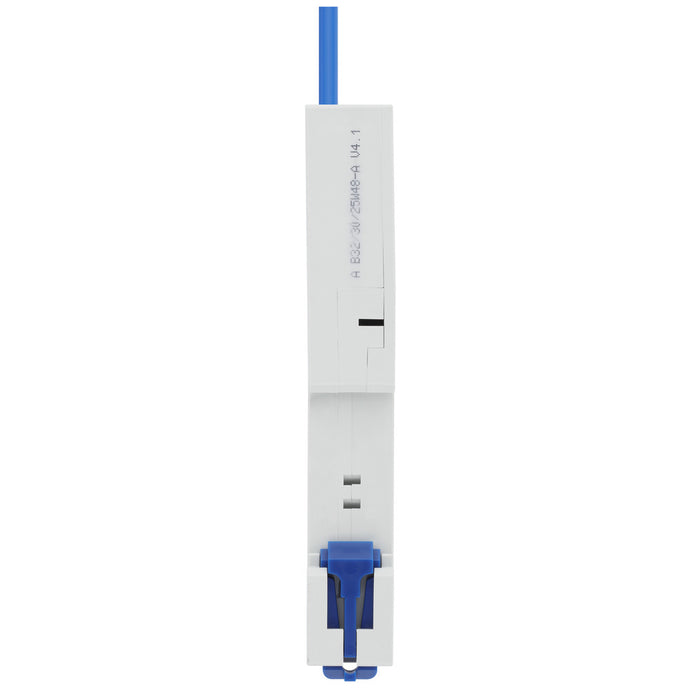

BG CURAFDB32DPA 32A 30mA Type A Bi-Directional AFDD RCBO

The BG CURAFDB32DPA is a robust 32A single module double pole AFDD RCBO, purpose-built for use with BG Fortress consumer units. This all-in-one protective device combines arc fault detection with overload, short circuit and earth leakage protection, delivering enhanced safety for modern electrical installations.

Designed with Type A protection and bi-directional capability, it detects dangerous arc faults that could lead to electrical fires while maintaining dependable circuit protection. With a B curve tripping characteristic, 30mA residual current sensitivity and a 6kA breaking capacity, it is ideal for residential and light commercial applications.

Key Features

• 32A single module AFDD RCBO
• Double pole switching for full isolation and increased safety
• Type A protection
• Bi-directional operation
• Combined AFDD and RCBO device
• B curve tripping characteristic
• 30mA residual current sensitivity
• 6kA breaking capacity
• Positive contact status indication
• Compatible with BG Fortress consumer units

Applications

Suitable for installations requiring advanced protection against arc faults, overloads, short circuits and earth leakage, particularly within BG Fortress consumer units in domestic and commercial environments.
