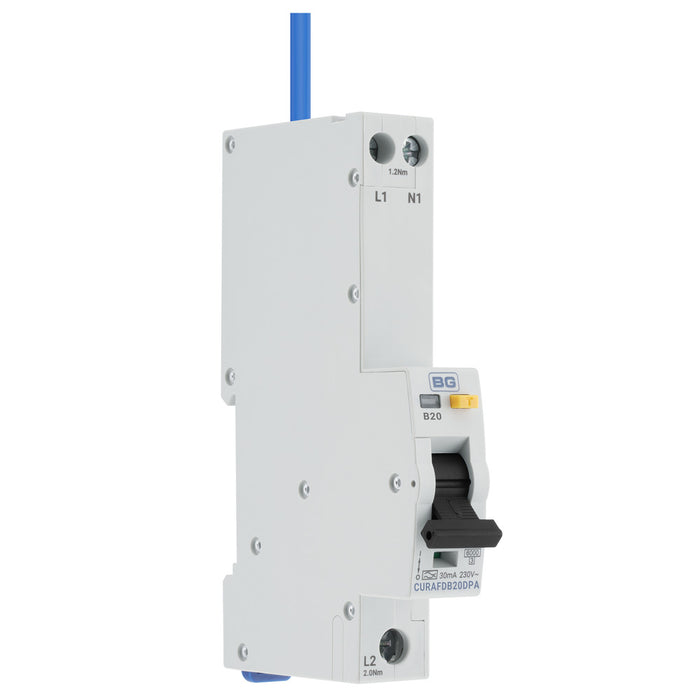

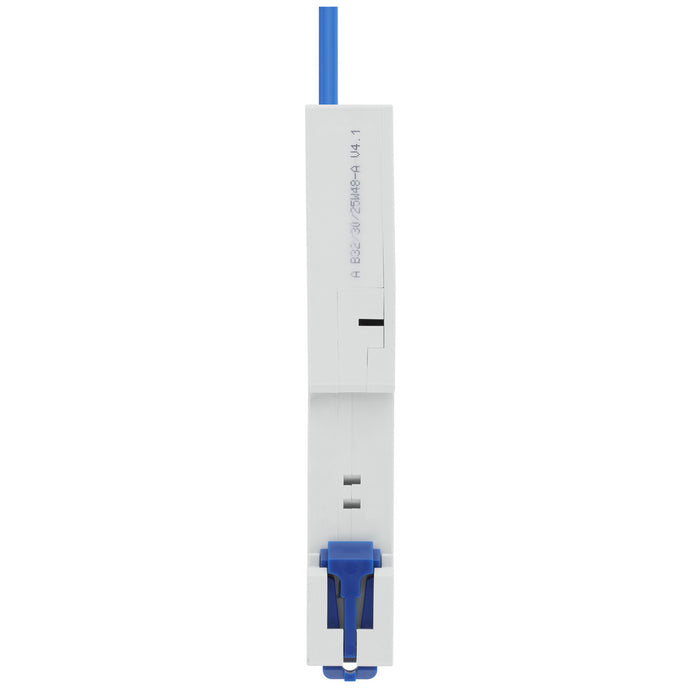

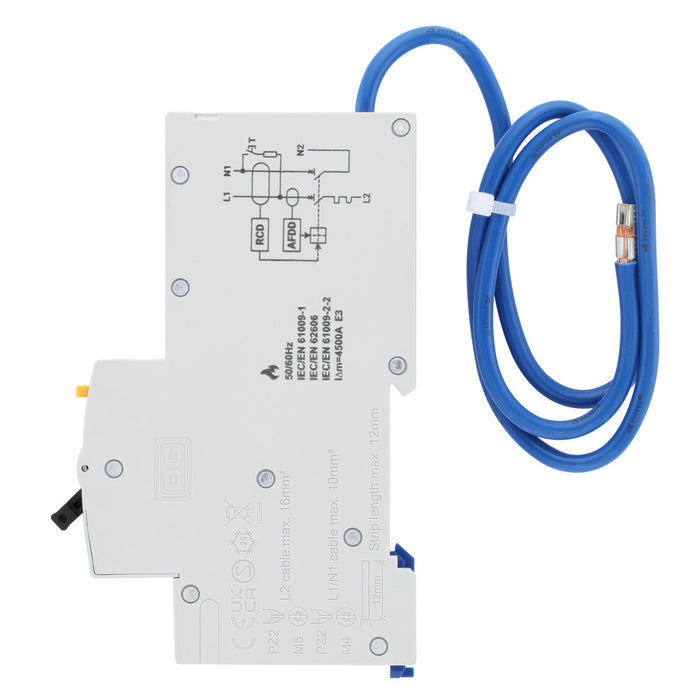

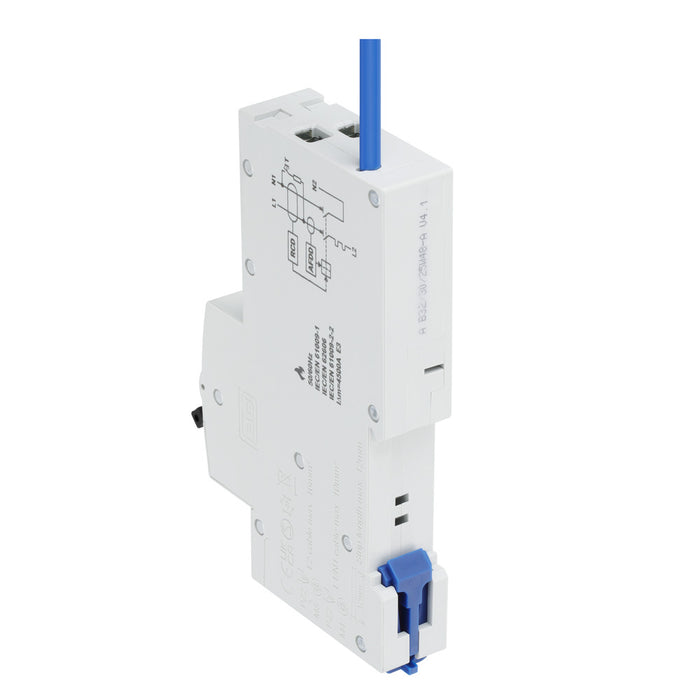

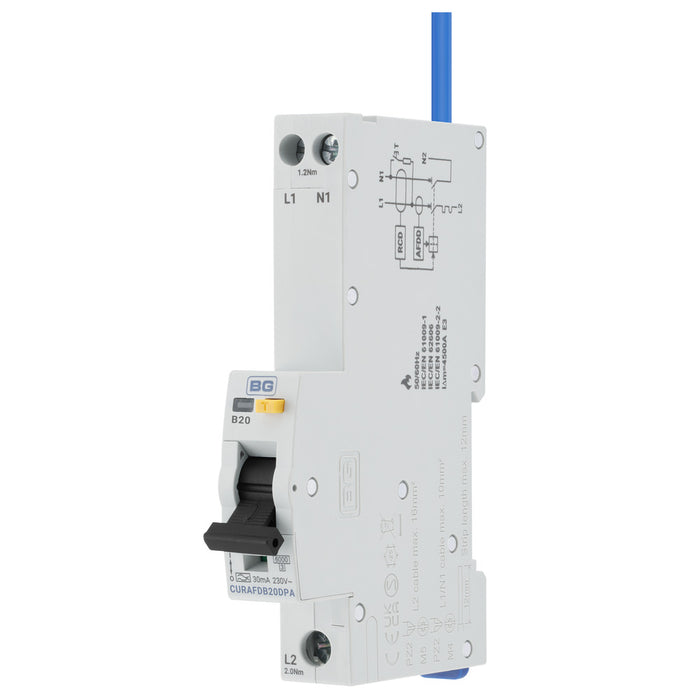

BG CURAFDB20DPA 20A 30mA Type A Bi-Directional AFDD RCBO

The BG CURAFDB20DPA is a reliable 20A single module double pole AFDD RCBO, designed for seamless integration with BG Fortress consumer units. This advanced protective device combines arc fault detection with overload, short circuit and earth leakage protection, helping to significantly reduce the risk of electrical fires.

Featuring Type A protection and bi-directional functionality, this unit is capable of detecting hazardous arc faults while ensuring consistent circuit safety. The B curve tripping characteristic, 30mA sensitivity and 6kA breaking capacity make it ideal for domestic and light commercial electrical installations.

Key Features

• 20A single module AFDD RCBO
• Double pole switching for enhanced safety and full isolation
• Type A device
• Bi-directional operation
• Combined AFDD and RCBO protection
• B curve tripping characteristic
• 30mA residual current sensitivity
• 6kA breaking capacity
• Positive contact status indicator
• Designed for use with BG Fortress consumer units

Applications

Ideal for use in BG Fortress consumer units where comprehensive protection against arc faults, overloads, short circuits and earth leakage is essential for safe and compliant installations.
