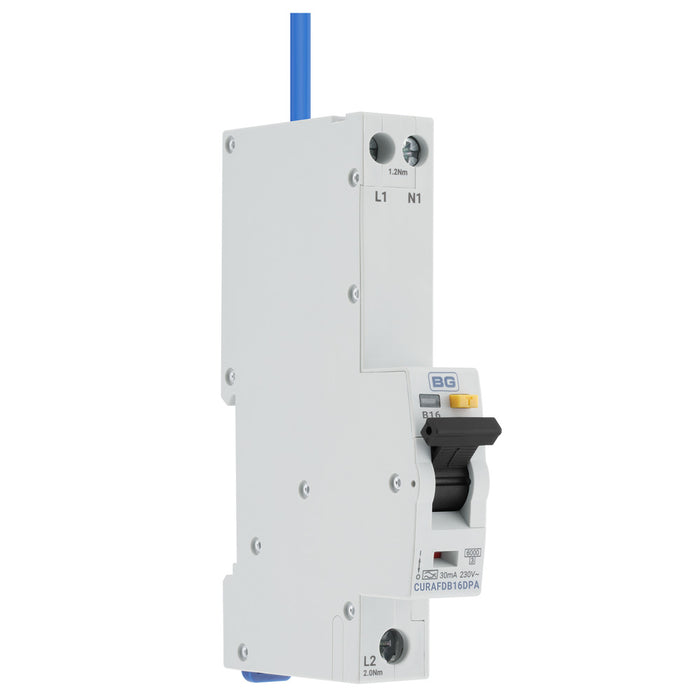

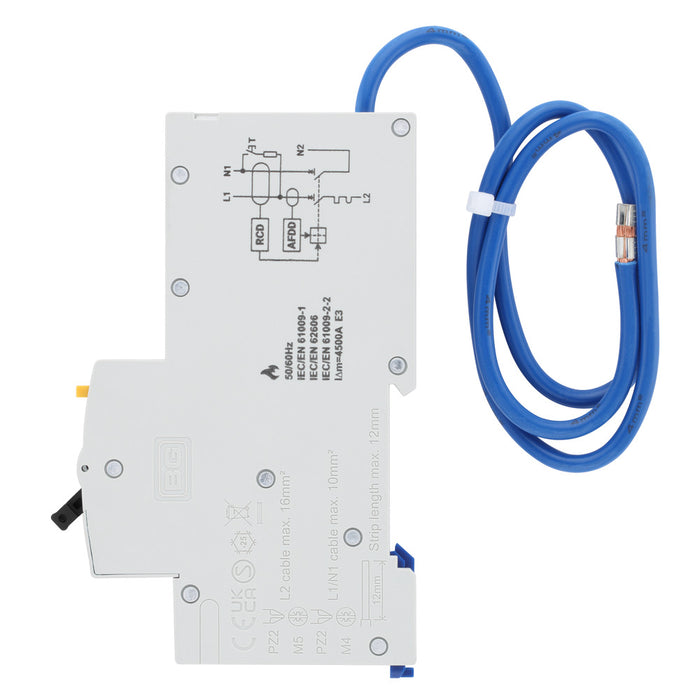

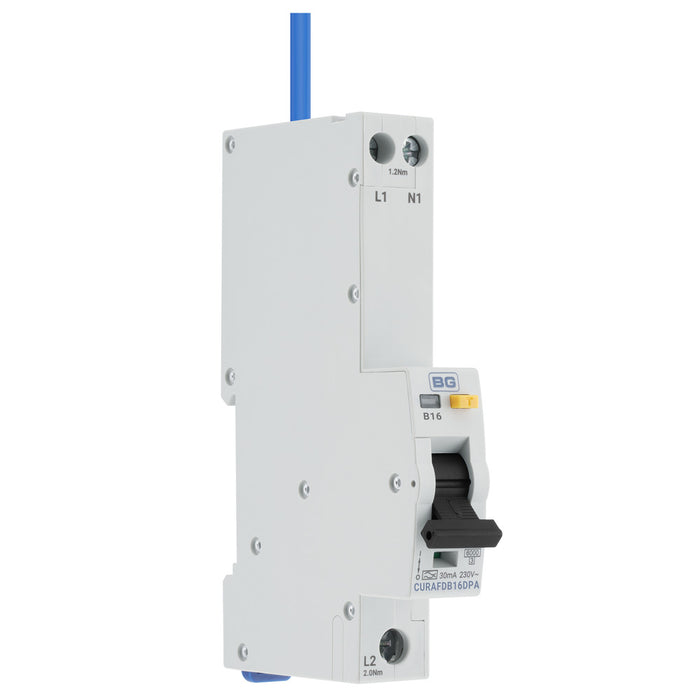

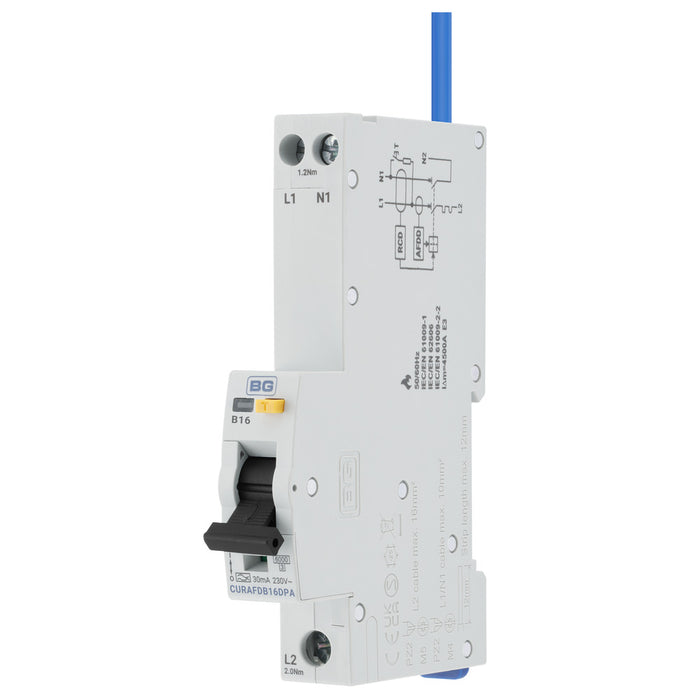

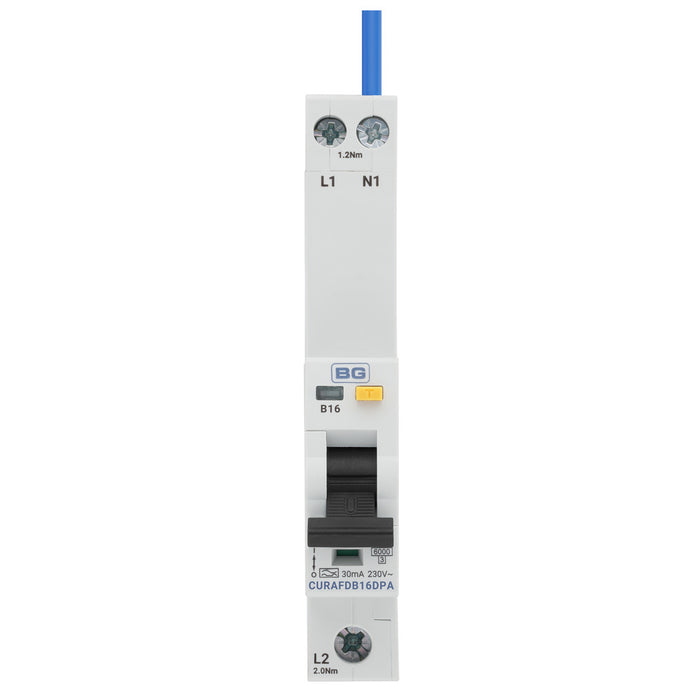

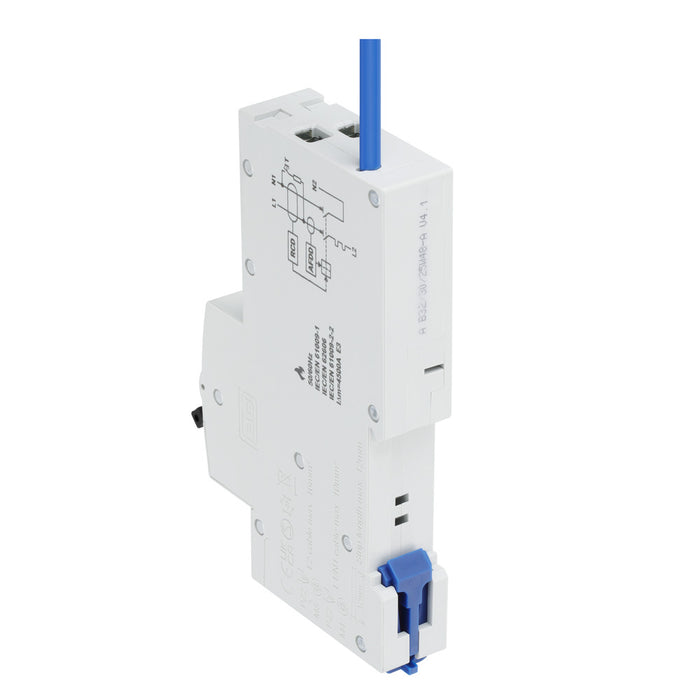

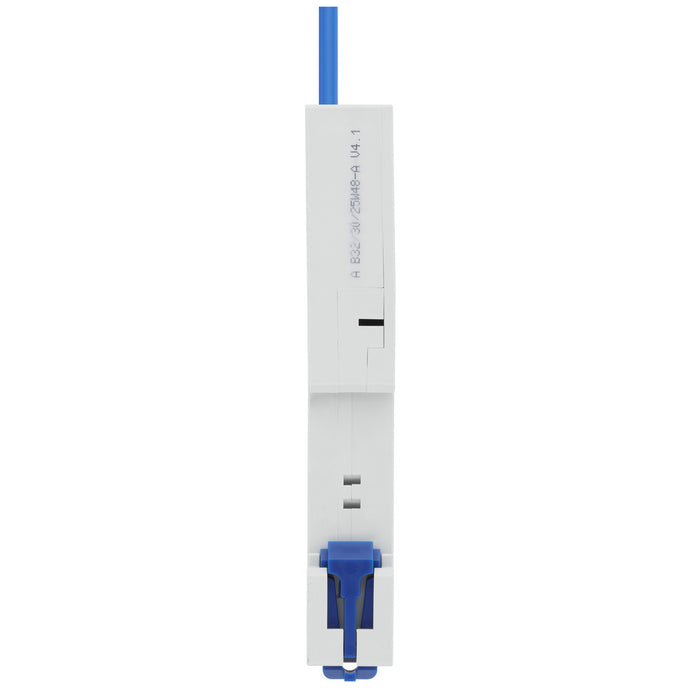

BG CURAFDB16DPA 16A 30mA Type A Bi-Directional AFDD RCBO

The BG CURAFDB16DPA is a high-performance 16A single module double pole AFDD RCBO, specifically designed for use with BG Fortress consumer units. It combines advanced arc fault detection with overload, short circuit and earth leakage protection, offering a comprehensive safety solution for modern electrical installations.

This Type A bi-directional device is engineered to detect potentially dangerous arc faults that could lead to electrical fires, while maintaining reliable circuit protection. Featuring a B curve tripping characteristic, 30mA sensitivity and a 6kA breaking capacity, it is ideal for both domestic and light commercial environments.

Key Features

• 16A single module AFDD RCBO
• Double pole switching for improved safety and isolation
• Type A protection
• Bi-directional operation
• Combined AFDD and RCBO functionality
• B curve tripping characteristic
• 30mA residual current sensitivity
• 6kA breaking capacity
• Positive contact status indication
• Designed for BG Fortress consumer units

Applications

Suitable for installations requiring enhanced protection against arc faults, overloads, short circuits and earth leakage, particularly within BG Fortress consumer units in residential and commercial settings.
