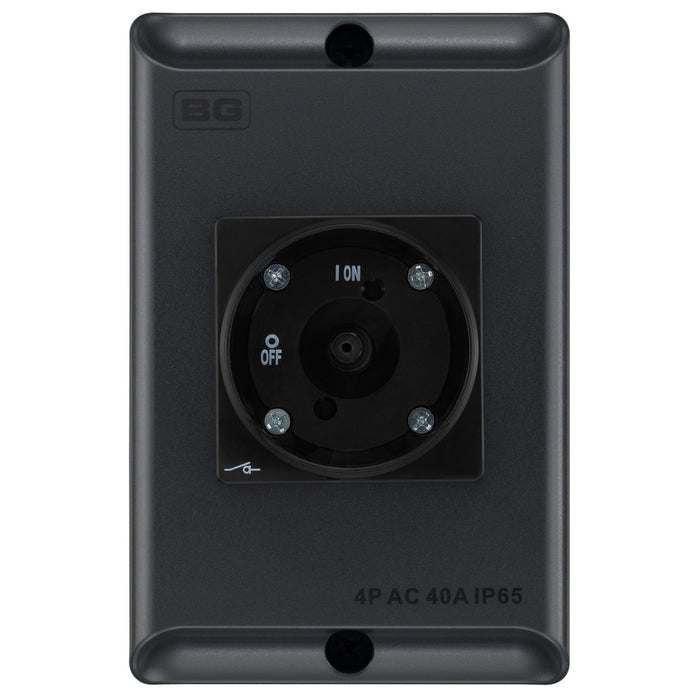

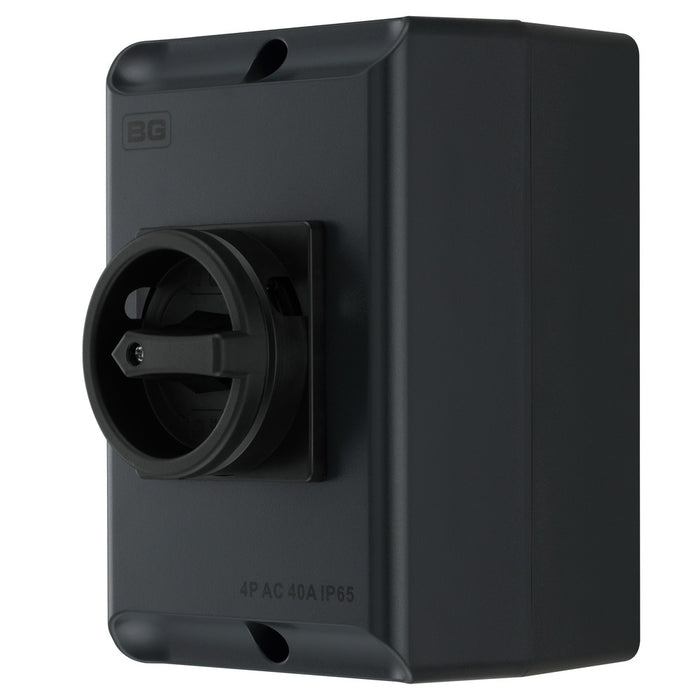

BG CPRSD440AG 40A 4 Pole AC IP65 Rotary Isolator – Anthracite Grey

Product Overview

The BG CPRSD440AG 40A 4 Pole Rotary Isolator is a robust and weatherproof switching solution designed to safely isolate electrical circuits and equipment. Featuring a durable IP65-rated enclosure, this isolator is ideal for installations in both indoor and outdoor environments where protection from dust and water is required.

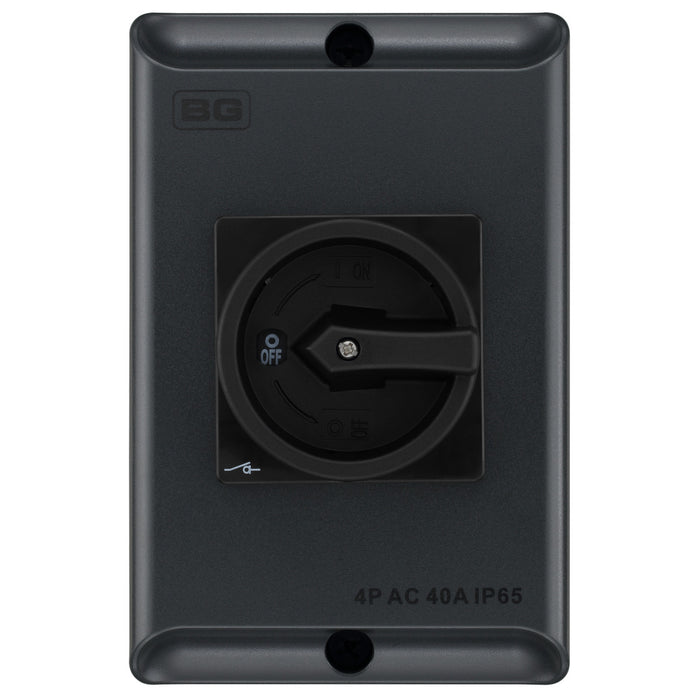

Finished in a contemporary anthracite grey, the unit incorporates a highly visible red and yellow rotary handle which can be padlocked for secure lock-off during maintenance. The switch mechanism is interlocked with the lid, preventing the enclosure from being opened while the switch is in the ON position, enhancing safety during operation.

With convenient M20 cable knock-outs at the top and bottom of the enclosure and captive cover screws for quick access, this 40A 4 pole isolator switch is designed for easy installation and long-term reliability across domestic, commercial and industrial electrical applications.

Key Features

• 40A 4 pole rotary isolator switch
• IP65 weatherproof enclosure for indoor and outdoor use
• Padlockable red and yellow rotary handle for safe lock-off
• Switch interlocked lid prevents opening when switched ON
• Durable insulated plastic enclosure in anthracite grey

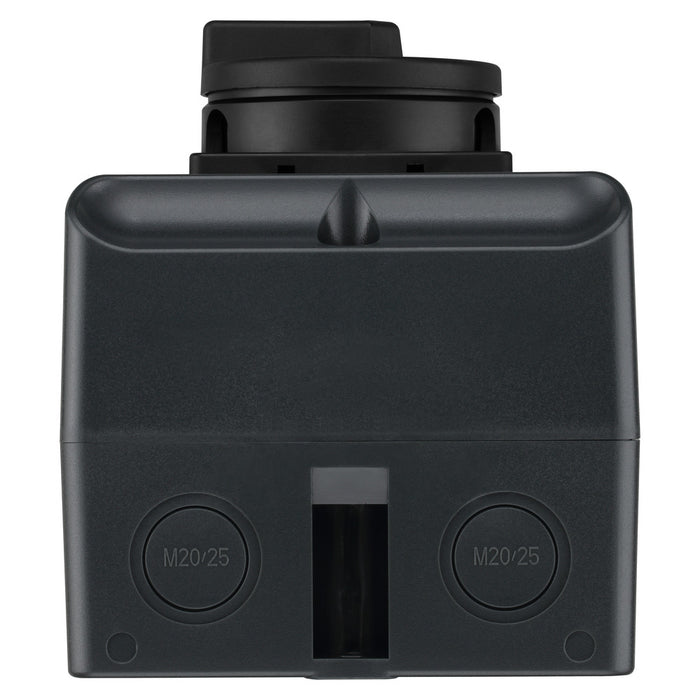

• M20 cable knock-outs for flexible cable entry (top and bottom)
• Captive retained cover screws for secure access

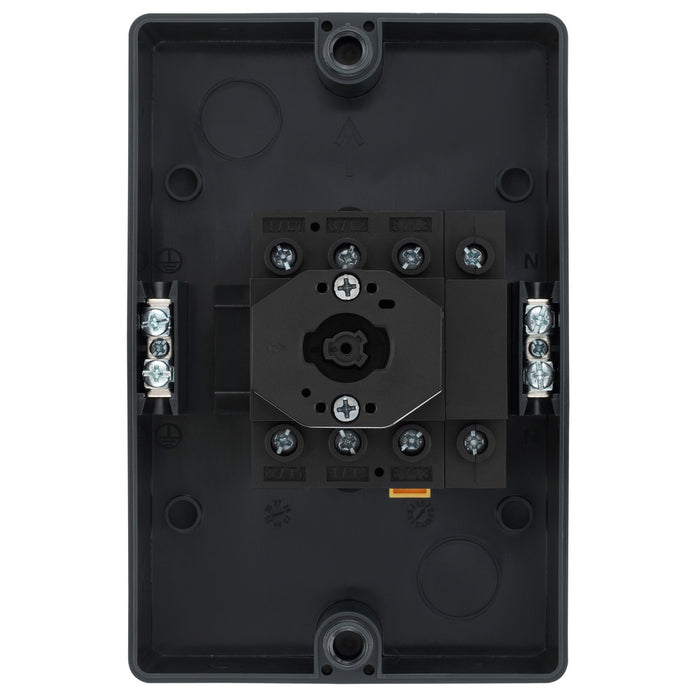

• Integrated earth terminals included
• Clear ON / OFF / Locked indicator on rotary handle

Technical Specification

• Manufacturer: BG Electrical
• Part Number: CPRSD440AG-01
• Current Rating: 40A
• Poles: 4 Pole
• Operating Voltage: 230V / 400V
• Frequency: 50–60Hz
• IP Rating: IP65
• Impact Rating: IK05
• Switch Type: Rotary
• Switch Indicator: On / Off / Locked
• Cable Entry Type: M20 knock-outs
• Number of Cable Entries: 4
• Terminal Type: Screw terminals
• Electrical Endurance: 3,000 operations
• Mechanical Endurance: 15,000 operations
• Operating Temperature: -5°C to +40°C
• Wall Fixing Positions: 4
• Colour: Anthracite Grey

Downloads

Data Sheet:
View the BG CPRSD440AG Data Sheet

Circuit Protection Range Leaflet:
View the BG Circuit Protection Range Leaflet
