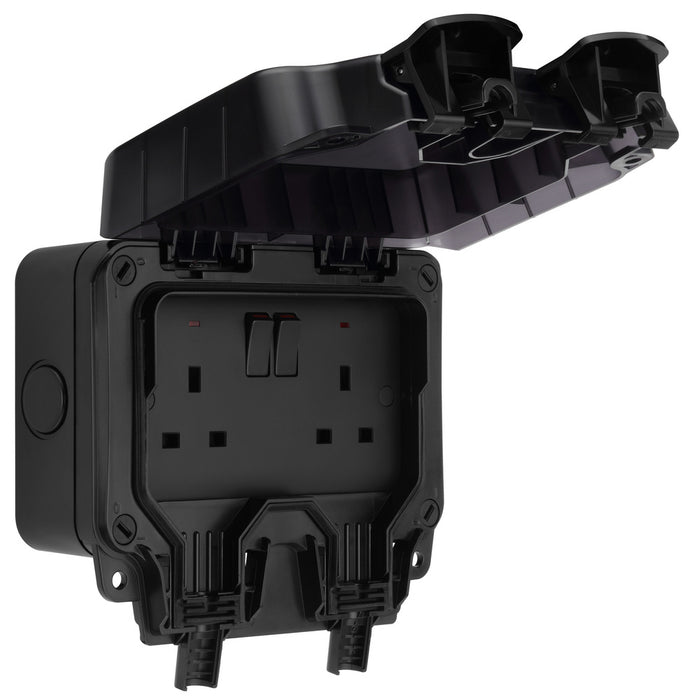

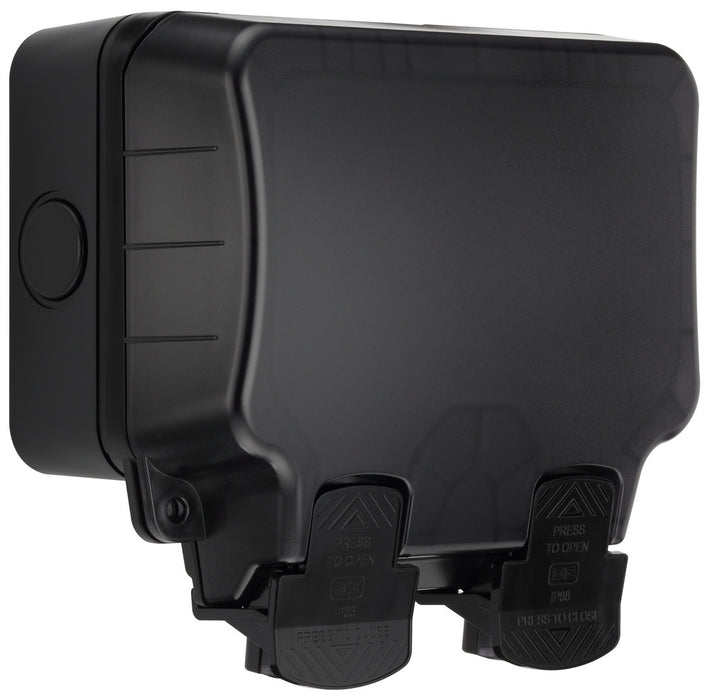

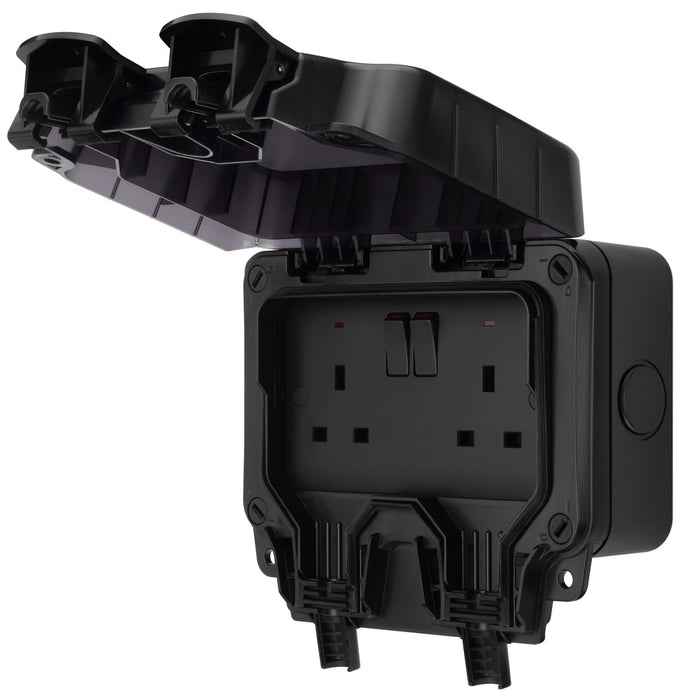

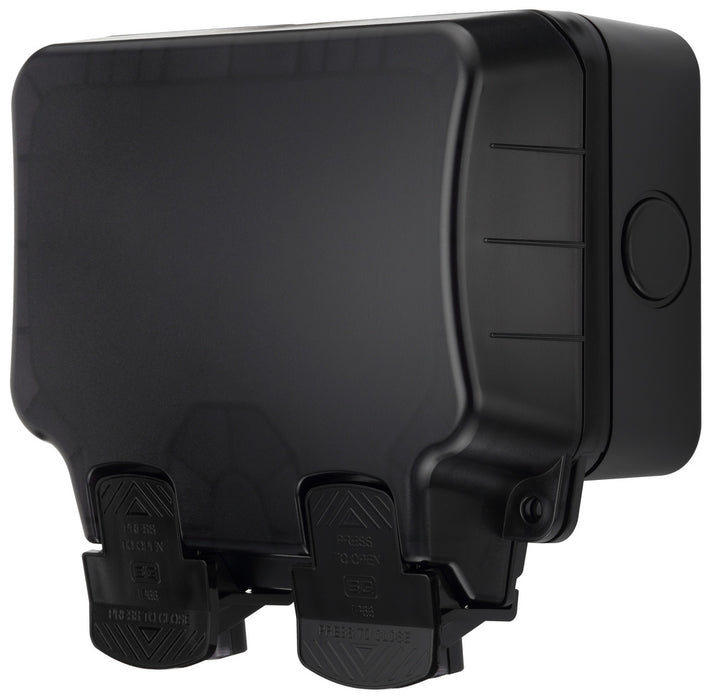

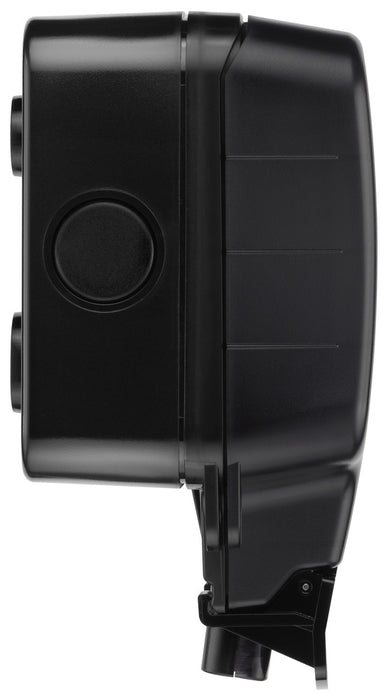

BG WP22/B Nexus Storm IP66 13A 2 Gang Switched Outdoor Socket – Matt Black

The BG Nexus Storm WP22/B is a premium weatherproof 13A 2 gang switched outdoor socket designed to provide a safe and reliable power supply in external environments. Finished in stylish matt black, this robust IP66-rated socket offers exceptional protection against water and dust ingress, making it ideal for gardens, patios, garages, workshops, sheds and other outdoor applications.

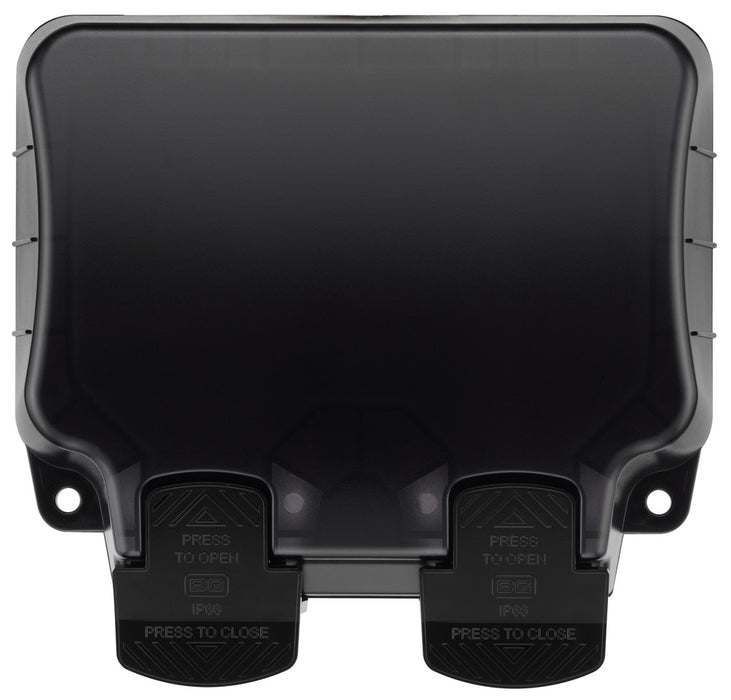

Constructed from a durable UV-stable, high-impact housing, the socket features a transparent hinged cover, patented cable entry system and integrated LED power indicators that remain visible when the cover is closed. Designed for quick and straightforward installation, it includes angled colour-coded terminals, captive screws and multiple knockout entries for maximum flexibility.

Key Features

• IP66-rated protection against water and dust ingress when the cover is closed
• 13A 2 gang switched outdoor socket
• Contemporary matt black finish
• Robust UV-stable, high-impact construction for outdoor use
• Fast-fix design with no separate screws or screw covers

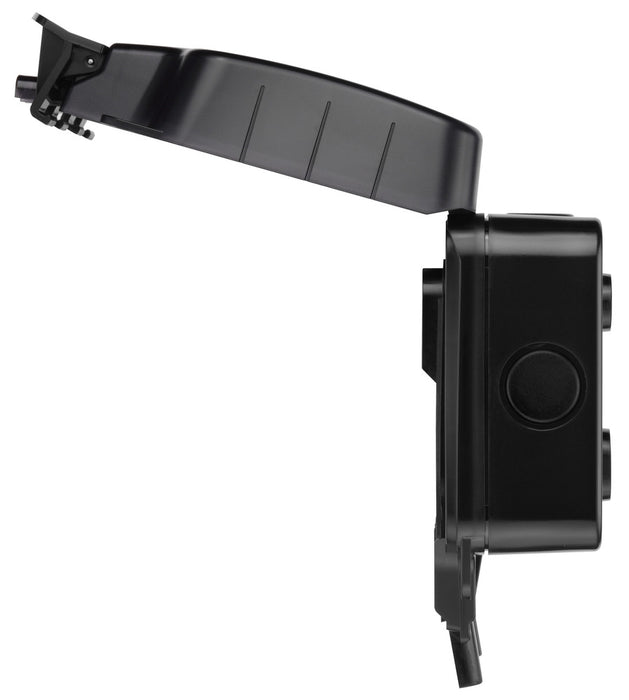

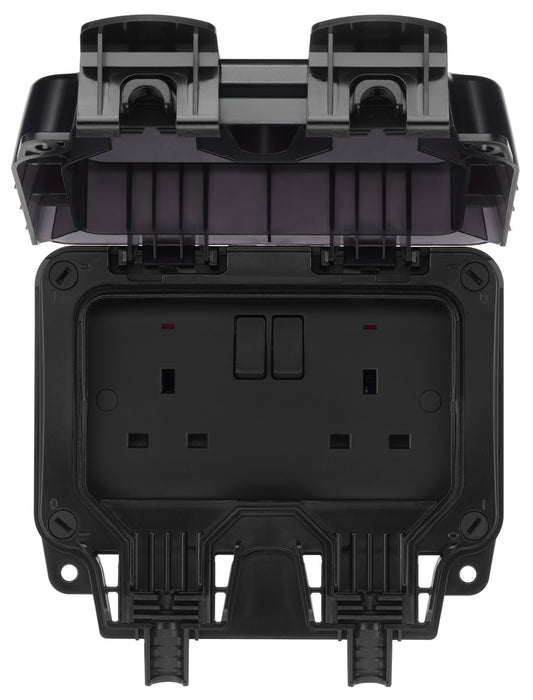

• 150° rotating cover for improved accessibility
• Patented cable entry system helps prevent accidental opening

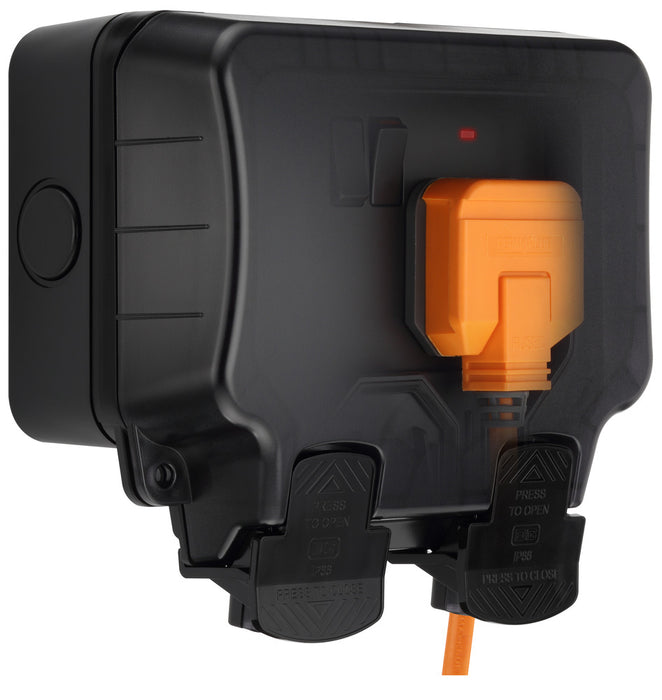

• Integrated LED power indicators visible through the transparent cover

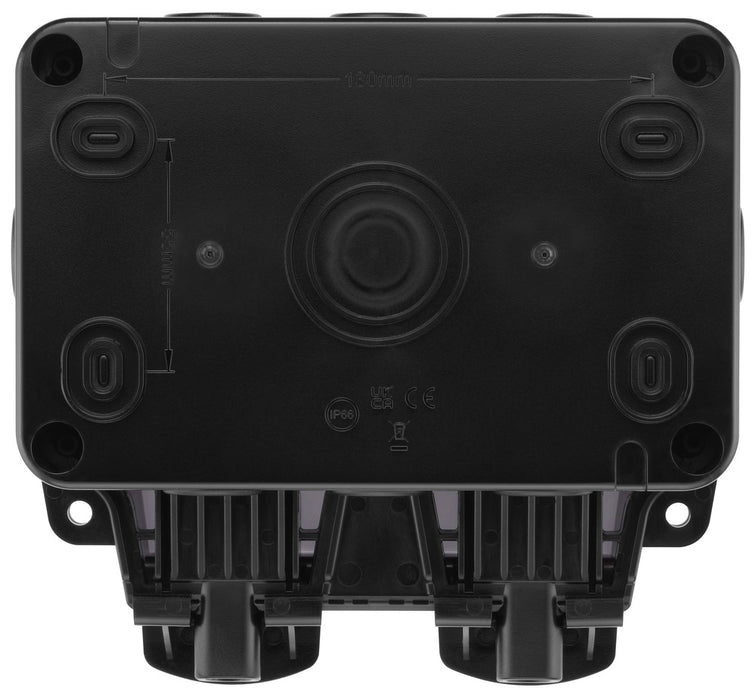

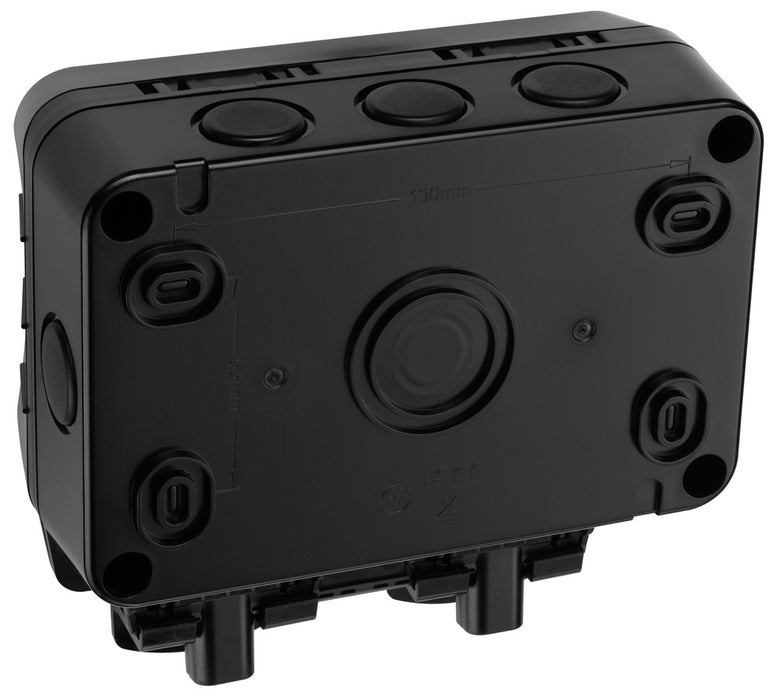

• Eight 20mm knockout cable entry points for installation flexibility

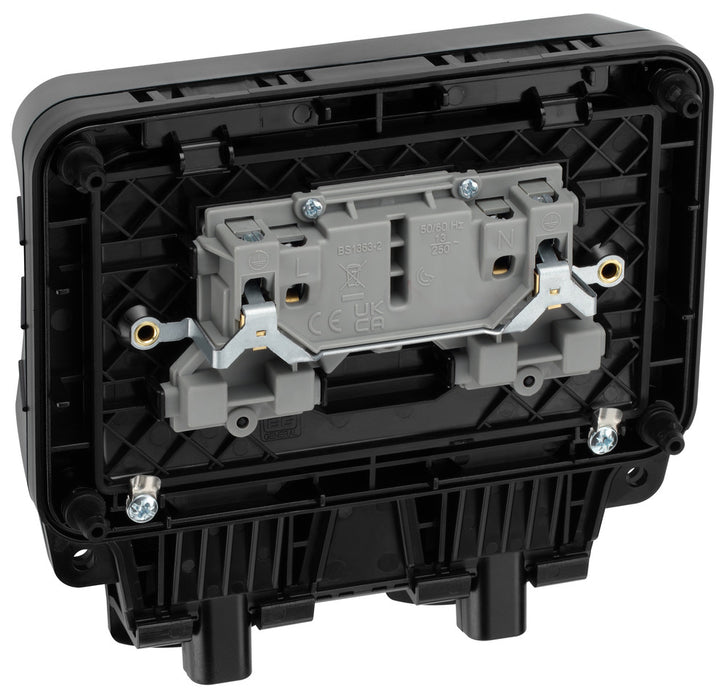

• Angled in-line colour-coded terminals for easier wiring
• Captive terminal screws help prevent screw loss during installation
• Twin earth terminals fitted as standard for high-integrity circuits
• Large opening and closing paddles for easy operation

Technical Specification

• Product Code: WP22/B
• Range: Nexus Storm
• Colour: Matt Black
• Socket Configuration: 2 Gang
• Socket Type: UK 13A Type G
• Number of Switches: 2
• Switch Type: Single Pole
• Current Rating: 13A
• Voltage Rating: 220–240V AC
• IP Rating: IP66
• Earth Terminals: 2
• Terminal Arrangement: Angled, Inline
• Terminal Capacity: 2 x 6.0mm², 3 x 4.0mm² or 3 x 2.5mm²
• Knockout Entries: 8 x 20mm
• Captive Terminal Screws: Yes
• Backed-Out Terminal Screws: Yes

Applications

Perfect for powering outdoor equipment and appliances including garden tools, lighting, water features, electric barbecues, workshops, garages, sheds and patio installations where reliable weatherproof protection is essential.
