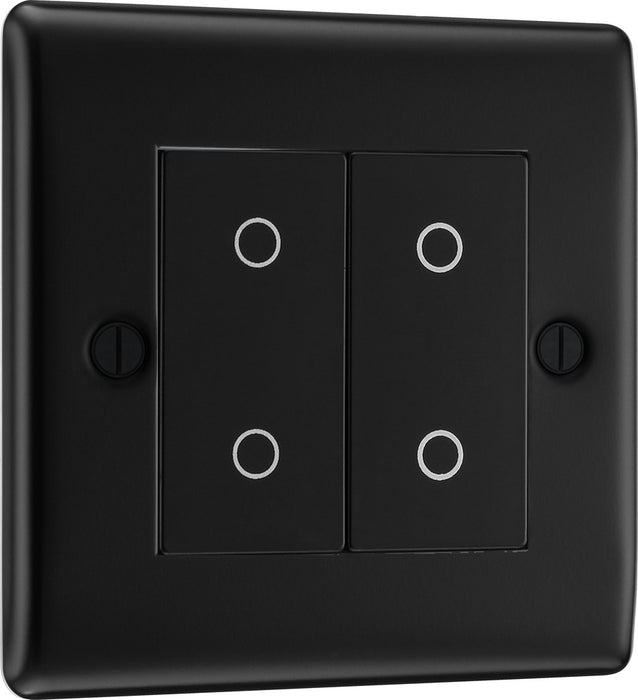

BG NFBTDM2B-K Nexus Metal 2-Way Master 200W Double Touch Dimmer Switch - Matt Black (Black)
SKU NFBTDM2B-K
Availability:
Dispatch in 2-3 Days
Original price
£34.54
-
Original price
£34.54
Original price
£34.54
Inc VAT
£28.78
Exc VAT
£34.54
-
£34.54
Current price
£28.78
£28.78
-
£28.78
Current price
£28.78
BG NFBTDM2B-K Nexus Metal 2-Way Master 200W Double Touch Dimmer Switch - Matt Black (Black)
Premium MATT BLACK metal accessories, in a range of superior quality finishes that will complement any interior décor
- Lightly lacquered surface to reduce fingerprint marks
- No visible around switches
- Angled in-line colour coded captive terminals
- Modern Slim profile
- Twin Earth
Nexus Metal is available in five stocked finishes:
This item is Double 2 Way Master
- Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
- Soft start brings the lights to a set level in around 1 second and extends the life of lamps
- Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
- Smooth dimming control
- Silent operation - no noise when dimming
- Support for lower wattage lamps eliminates flicker
- Touch dimmer control
- Captive backed out terminal screws prevent screw loss
- Silent operation - no noise when dimming
- Manufactured to BS EN 60669-2-1
- Terminal capacity 3x1.0mm2, 2x1.5mm2 & 1x2.5mm2
- Minimum mounting box depth - 25mm
Load Rating (Max/Min per module)
- Dimmable LED 5-100W
- Tungsten/Incandescent 5-200W
- Halogen 20-200W
- Dimmable Compact Fluorescent (CFL) 5-100W
- Master can only be used in a one way switching circuit where one switch controls a light (or circuit) i.e. on or off.
- For two way switching, where a light (or circuit) is controlled by two switches, the master touch dimmer must be used with a secondary touch dimmer at the secondary location.
- A master touch dimmer cannot be used in combination with a traditional light switch or any other dimmer switch.
Installation Note
