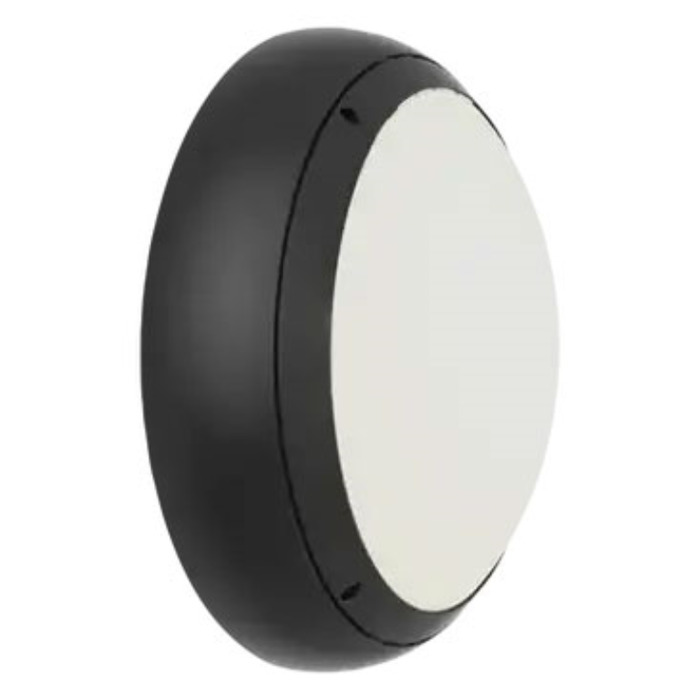

Ansell AVIL/1/GR/DD3/DM3 Vision CCT Dual Wattage DALI DALI-Emergency Graphite

Ansell AVIL/1/GR/DD3/DM3 Vision CCT Dual Wattage DALI DALI-Emergency Graphite

Availability:
Dispatch in 7-10 Days
SKU AVIL/1/GR/DD3/DM3
Request a quote
£315.69
£315.69 - £315.69
£315.69
£222.45
Exc VAT
£266.94
Inc VAT
£266.94 - £266.94
£266.94
£222.45 - £222.45
£266.94
Product Description
Customer Reviews
Read More...

Ansell AVIL/1/GR/DD3/DM3 Vision CCT Dual Wattage DALI DALI-Emergency Graphite

Internal / External5CeilingWall
  • IP65 CCT polycarbonate luminaire suitable for healthcare, educational, commercial and industrial applications
  • CCT selectable between 3000K and 4000K and power selectable; offering a choice of 2 outputs, in one luminaire
  • UV stabilised polycarbonate constructions allows installation into areas exposed to adverse weather conditions
  • Top, bottom and side conduit entry covers retain sleek appearance when not in use
  • Clip in gear tray ensures quick installation
  • Corridor function options available for effective reduction in energy consumption
  • Dimmable, Photocell, MWS and Emergency options available
  • Powered by Tridonic

Dimensions

Height:110 mm
Diameter:350 mm
Depth:125 mm

LED Information

Total (Watts):18W
Lumens Delivered:1300lm - 2100lm
Lm/W:130lm/W - 120lm/W
CRI:80
CCT:3000/4000K
Input:220-240V
Operating Temp:5°C - 40°C

Polar Curve

Data Sheet:

Click Here for Data Sheet

Product Description

Ansell AVIL/1/GR/DD3/DM3 Vision CCT Dual Wattage DALI DALI-Emergency Graphite

Internal / External5CeilingWall
  • IP65 CCT polycarbonate luminaire suitable for healthcare, educational, commercial and industrial applications
  • CCT selectable between 3000K and 4000K and power selectable; offering a choice of 2 outputs, in one luminaire
  • UV stabilised polycarbonate constructions allows installation into areas exposed to adverse weather conditions
  • Top, bottom and side conduit entry covers retain sleek appearance when not in use
  • Clip in gear tray ensures quick installation
  • Corridor function options available for effective reduction in energy consumption
  • Dimmable, Photocell, MWS and Emergency options available
  • Powered by Tridonic

Dimensions

Height:110 mm
Diameter:350 mm
Depth:125 mm

LED Information

Total (Watts):18W
Lumens Delivered:1300lm - 2100lm
Lm/W:130lm/W - 120lm/W
CRI:80
CCT:3000/4000K
Input:220-240V
Operating Temp:5°C - 40°C

Polar Curve

Data Sheet:

Click Here for Data Sheet
