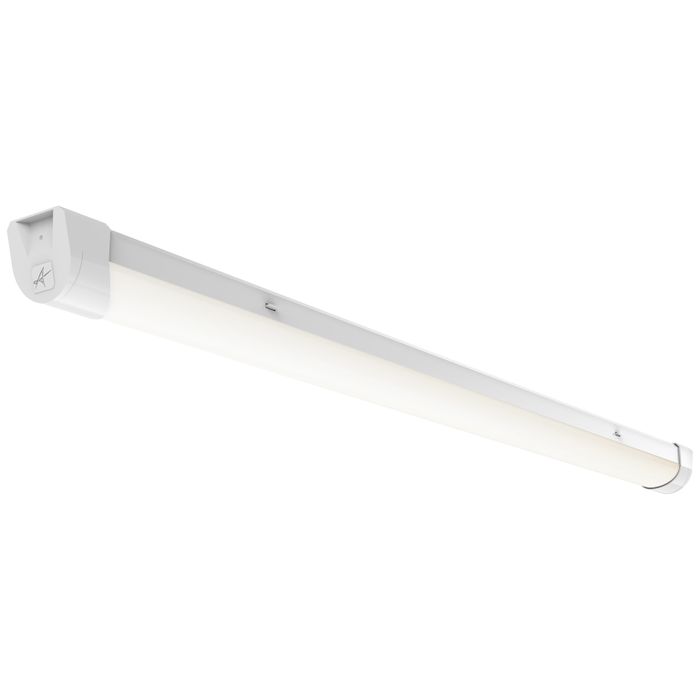

Ansell ATLEVO5 Topline EVO 1500mm CCT

Main Image

Ansell ATLEVO5 Topline EVO 1500mm CCT

Availability:
Dispatch in 2-5 Days
SKU ATLEVO5
Request a quote
£42.87
£42.87 - £42.87
£42.87
£38.91
Inc VAT
£32.43
Exc VAT
£38.91 - £38.91
£32.43
£32.43 - £32.43
£32.43
Product Description
Customer Reviews
Read More...

Ansell ATLEVO5 Topline EVO 1500mm CCT

Internal5CeilingSuspended
  • High performance, multi-wattage LED CCT batten suitable for industrial and multi-purpose applications
  • Selectable CCT between 3000K, 4000K and 5700K
  • High efficiency up to 140 lm/W
  • Power selectable; offering high and low output option in each length
  • Excellent light uniformity through high transmittance polycarbonate diffuser
  • Instant light output with unlimited switching
  • Innovative spring clip gear tray release aids fast and easy installation
  • Self-test, lithium emergency option
  • Dimmable and Smart options available
  • Powered by Tridonic

Dimensions

Length:1,520 mm
Height:70 mm
Width:70 mm

LED Information

Total (Watts):25W - 44W
Lumens Delivered:3300lm - 6000lm (4000K)
Lm/W:140lm/W
CRI:80
CCT:3000/4000/5700K
Input:220-240V
Operating Temp:-10°C - 40°C

Polar Curve

Data Sheet:

Click Here for Data Sheet

Product Description

Ansell ATLEVO5 Topline EVO 1500mm CCT

Internal5CeilingSuspended
  • High performance, multi-wattage LED CCT batten suitable for industrial and multi-purpose applications
  • Selectable CCT between 3000K, 4000K and 5700K
  • High efficiency up to 140 lm/W
  • Power selectable; offering high and low output option in each length
  • Excellent light uniformity through high transmittance polycarbonate diffuser
  • Instant light output with unlimited switching
  • Innovative spring clip gear tray release aids fast and easy installation
  • Self-test, lithium emergency option
  • Dimmable and Smart options available
  • Powered by Tridonic

Dimensions

Length:1,520 mm
Height:70 mm
Width:70 mm

LED Information

Total (Watts):25W - 44W
Lumens Delivered:3300lm - 6000lm (4000K)
Lm/W:140lm/W
CRI:80
CCT:3000/4000/5700K
Input:220-240V
Operating Temp:-10°C - 40°C

Polar Curve

Data Sheet:

Click Here for Data Sheet
