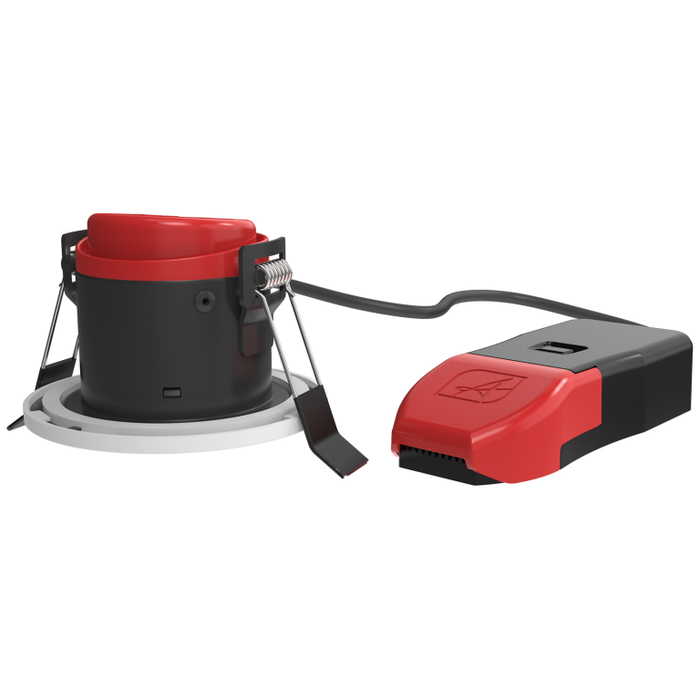

Ansell APRIP/1/OCTOW/TW OCTO Prism Pro 8W IP65 Dimmable CCT Fire Rated LED Downlight WiZ Tunable White 2700K-6500K

Product Description

• Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
• Wide 60° beam angle for increased light distribution
• IP65 Dimmable LED WiZ enabled tunable white Fire Rated Downlight suitable for residential and commercial applications
• Connects directly to your WiFi network using Bluetooth technology to support seamless pairing
• Tunable between 2700K - 6500K via WiZ app and voice control offering a choice of 2 outputs, in one luminaire
• New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
• Remote driver with 2x1.5mm? + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
• Low profile design and remote driver allows installation into shallow ceiling voids
• Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations

Dimensions

• Height: 58mm
• Diameter: 90mm
• Cut-Out Size: 73mm

LED Information

• Total (Watts): 8W
• Lumens Delivered: 500lm - 550lm (2700K - 6500K)
• CRI: 80
• CCT: 2700-6500K
• Input: 220-240V
• Operating Temp: -20^oC to 35^oC

Data Sheet:

Instruction Manual:
