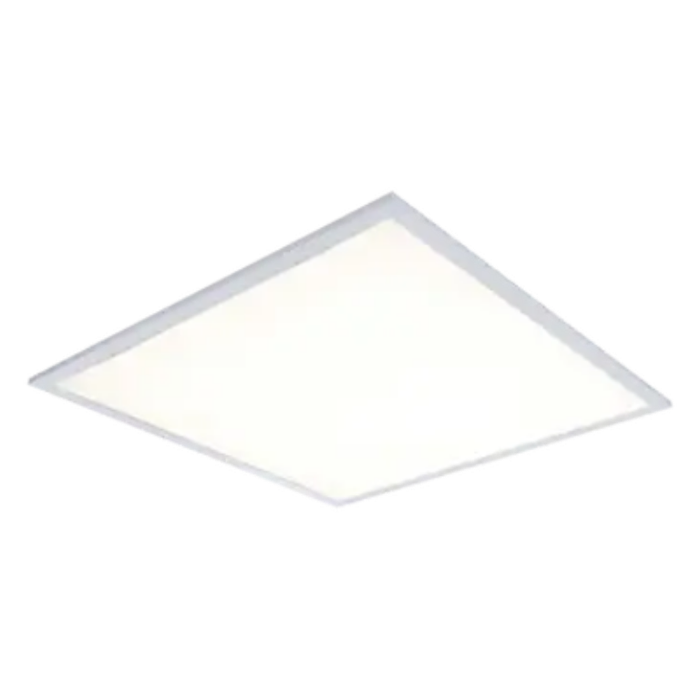

Ansell APACP/60/CW/DM3 Pace Plus 600x600 Multi Wattage DALI-Emergency Cool White

• Industry leading super high efficiency (up to 180lm/W) backlit LED panel suitable for education, commercial and ancillary area applications
• Slimline design allows for installation into shallow ceiling voids
• UGR<19 (unified glare rating) compliant luminaire assisting to eliminate glare for visual comfort
• Power selectable; offering a choice of 4 outputs, in one luminaire
• Dimmable and OCTO options available
• TPa as standard
• Switch Dim, DALI and 0-10V dimming capability using the multi dimmable driver accessories ADDIM30/MC
• Compatible with either the self-test panel pod or the sensor pod

Dimensions

Length:595 mm

Height:47 mm

Width:595 mm

Cut-Out Size:585x585mm

Polar Curve

Data Sheet:

Click Here for Data Sheet
