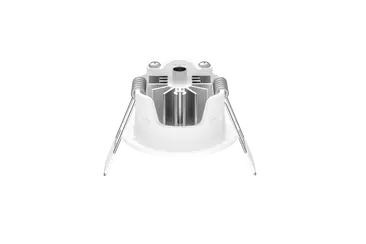

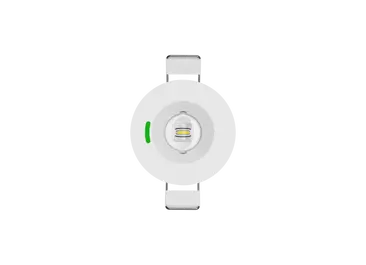

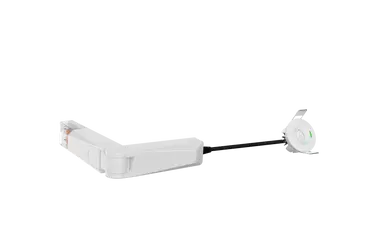

Ansell ASIP/1/HO/W Signal PRO 2.5W High Output Non-Maintained Emergency Downlight 5000K White

The Ansell Signal PRO ASIP/1/HO/W is a high-performance non-maintained emergency LED downlight designed for commercial, educational, healthcare and public buildings. Featuring an ultra-low profile recessed design, this emergency fitting delivers a powerful 250-lumen output with excellent spacing performance, helping to reduce installation costs while maintaining compliance with emergency lighting requirements.

Equipped with a long-life LiFePO4 lithium battery, the Signal PRO emergency downlight provides enhanced reliability and extended service life. The fitting is supplied with interchangeable open area and escape route lenses, allowing installers to adapt the luminaire to specific emergency lighting applications.

Key Features

• High output 2.5W non-maintained emergency LED downlight
• Ultra-low profile recessed design for discreet installation
• 250 lumens emergency light output
• 5000K daylight colour temperature
• Advanced optic design provides increased spacing between fittings
• Supplied with interchangeable open area and escape route lenses
• Long-life LiFePO4 lithium battery technology
• Selectable Self-Test or Manual Test functionality
• Compatible emergency variants available including Self-Test and DALI
• Wide bezel accessory available for retrofit applications
• Stylish white finish
• Suitable for commercial and public sector emergency lighting installations

Technical Specification

• Product Code: ASIP/1/HO/W
• Wattage: 2.5W
• Emergency Light Output: 250 Lumens
• Colour Temperature: 5000K Daylight
• CRI: 70
• Input Voltage: 220-240V AC
• Battery Type: LiFePO4 Lithium
• Operating Temperature: 0°C to 45°C
• Finish: White

Dimensions

• Diameter: 50mm
• Height: 31mm
• Cut-Out Size: 45mm
