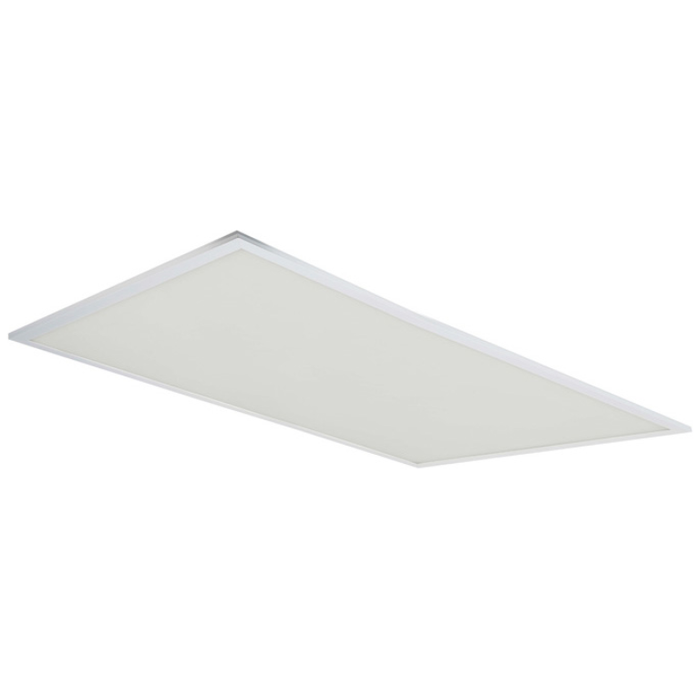

Ansell AERMLED3/120/WW/OCTO Endurance TP(a) UGR<19 1200x600 Panel OCTO Smart Control 3000K Warm White

Ansell AERMLED3/120/WW/OCTO Endurance TP(a) UGR<19 1200x600 Panel OCTO Smart Control 3000K Warm White

Availability:
Dispatch in 7-10 Days
SKU AERMLED3/120/WW/OCTO
Request a quote
£194.52
£194.52 - £194.52
£194.52
£153.40
Exc VAT
£184.08
Inc VAT
£184.08 - £184.08
£184.08
£153.40 - £153.40
£184.08
Product Description
Customer Reviews
Read More...

Ansell AERMLED3/120/WW/OCTO Endurance TP(a) UGR<19 1200x600 Panel OCTO Smart Control 3000K Warm White

Internal5RecessedSurfaceBluetoothPanel Pod Compatible
  • Edge lit LED panel suitable for education, commercial and ancillary area applications
  • UGR<19 (unified glare rating) compliant luminaire assisting to eliminate glare for visual comfort
  • Cool white, warm white and daylight options
  • White anodised aluminium frame for visual compatibility with ceiling grid
  • Surface mounting frame option
  • TPa as standard
  • Switch Dim, DALI and 0-10V dimming capability using the multi dimmable driver accessories ADDIM/60/MC
  • Compatible with either the self-test panel pod or the sensor pod

Dimensions

Length:1,195 mm
Width:595 mm
Depth:10 mm
Cut-Out Size:585x1185mm

LED Information

Total (Watts):60W
Lumens Delivered:5400lm
Lm/W:90lm/W
CRI:80
CCT:3000K
Input:220-240V
Operating Temp:-20°C - 40°C

Polar Curve

Data Sheet:

Click Here for Data Sheet
