Ansell AECLED/SC/CCT/CF/M3 Eclipse MultiLED CCT Satin Chrome DD1 Corridor Function EM Self-Test

Name: Ansell AECLED/SC/CCT/CF/M3 Eclipse MultiLED CCT Satin Chrome DD1 Corridor Function EM Self-Test
Brand: Ansell
SKU: AECLED/SC/CCT/CF/M3
Price: 195.92 GBP
Availability: InStock

Ansell AECLED/SC/CCT/CF/M3 Eclipse MultiLED CCT Satin Chrome DD1 Corridor Function EM Self-Test

Availability:

Dispatch in 7-10 Days

SKU AECLED/SC/CCT/CF/M3

£218.42

£218.42 - £218.42

£218.42

£163.27

Exc VAT

£195.92

Inc VAT

£195.92 - £195.92

£195.92

£163.27 - £163.27

£195.92

Product Description

Customer Reviews

Ansell AECLED/SC/CCT/CF/M3 Eclipse MultiLED CCT Satin Chrome DD1 Corridor Function EM Self-Test

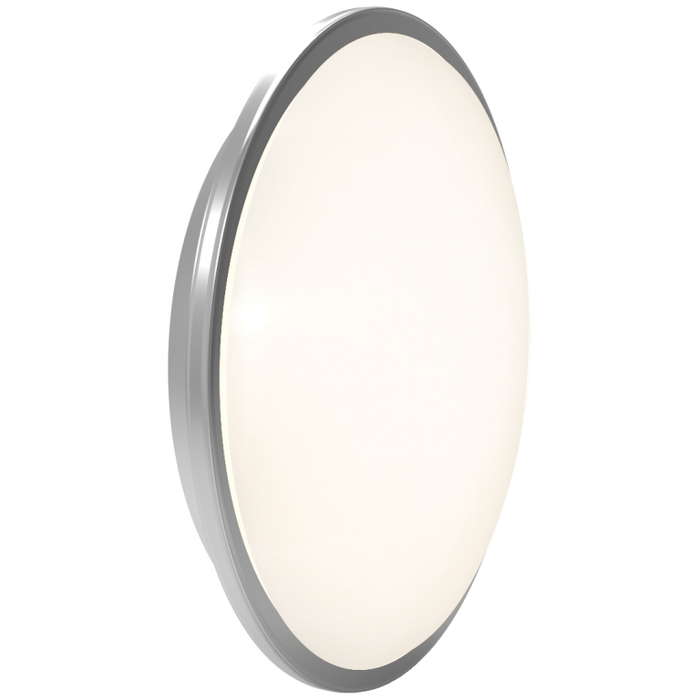

LED wall/ceiling luminaire with adjustable power and light output option suitable for education and commercial applications and ancillary areas
One product with integral driver dip-switch
Internal CCT selector switch allows the installer to choose the CCT between 3000K and 4000K
Corridor function options available for effective reduction in energy consumption
Spun aluminium base with dished opal Visiluxe diffuser
BESA box fixing versatile mounting options

Dimensions

Diameter:435 mm

Depth:100 mm

LED Information

Total (Watts):25W

Lumens Delivered:1200lm - 2800lm (4000K)

Lm/W:108lm/W - 114lm/W (4000K)

CRI:80

CCT:3000/4000K

Input:220-240V

Operating Temp:0°C - 25°C

Polar Curve

Data Sheet:

Click Here for Data Sheet

Product Description

Ansell AECLED/SC/CCT/CF/M3 Eclipse MultiLED CCT Satin Chrome DD1 Corridor Function EM Self-Test

LED wall/ceiling luminaire with adjustable power and light output option suitable for education and commercial applications and ancillary areas
One product with integral driver dip-switch
Internal CCT selector switch allows the installer to choose the CCT between 3000K and 4000K
Corridor function options available for effective reduction in energy consumption
Spun aluminium base with dished opal Visiluxe diffuser
BESA box fixing versatile mounting options

Dimensions

Diameter:435 mm

Depth:100 mm

LED Information

Total (Watts):25W

Lumens Delivered:1200lm - 2800lm (4000K)

Lm/W:108lm/W - 114lm/W (4000K)

CRI:80

CCT:3000/4000K

Input:220-240V

Operating Temp:0°C - 25°C

Polar Curve

Data Sheet:

Click Here for Data Sheet
