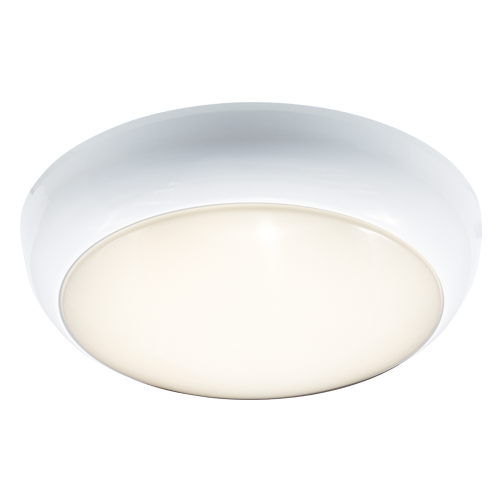

Ansell ADIS1/1/SM3 Disco EVO 1 IP65 4W-7W CCT Adjustable LED Bulkhead with Self-Test Emergency 3000K/4000K/6500K

Product Description

• Slim and modern bulkhead suitable for residential, commercial and industrial applications as well as ancillary areas
• High efficiency up to 145lm/W
• All polycarbonate construction with opal diffuser and white trim ring with optional chrome, satin chrome or graphite trim ring accessories
• CCT selectable between 3000K, 4000K and 6500K and power selectable; offering a choice of 3 outputs, in one luminaire
• Gear tray located on the bezel, allowing the base to be installed and then the bezel connected, this coupled with 4x 20mm conduit entry points on base ensure a quick and simple installation
• Two options of microwave sensor emergency
• Instant light output and unlimited switching

LED Information

• Total (Watts): 4W - 7W
• Lumens Delivered: (4000K) 4W: 480lm 5W: 700lm 7W: 950lm
• CRI: 80
• CCT: 3000K/4000K/6500K
• Input: 220-240V
• Operating Temp: 0^oC to 40^oC
