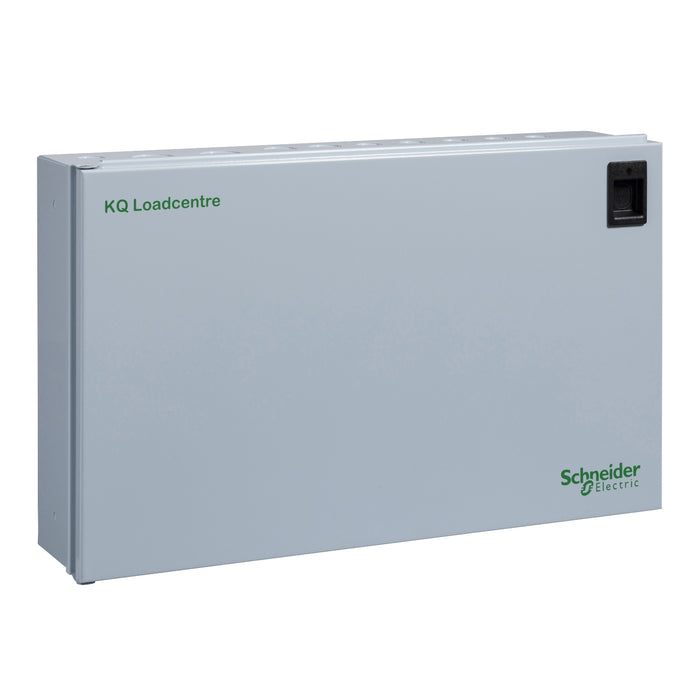

Schneider Electric SE125A16 LoadCentre KQ 125A 16 Ways Single Phase Type A Distribution Board

Name: Schneider Electric SE125A16 LoadCentre KQ 125A 16 Ways Single Phase Type A Distribution Board
Brand: Schneider Electric
SKU: SE125A16
Price: 115.74 GBP
Availability: InStock

Schneider Electric SE125A16 LoadCentre KQ 125A 16 Ways Single Phase Type A Distribution Board

Availability:

Dispatch in 2-3 Days

SKU SE125A16

£115.74 - £115.74

£96.45

Exc VAT

£115.74

Inc VAT

£115.74 - £115.74

£115.74

£96.45 - £96.45

£115.74

Product Description

Customer Reviews

Schneider Electric SE125A16 LoadCentre KQ 125A 16 Ways Single Phase Type A Distribution Board

Product Description

Modular solution which is flexible Metering and integral control options

Specifications

Range: Acti9
Product name: Load centre KQ II A
Product or component type: Distribution board
device application: Distribution
Enclosure type: Standard
door type: Overall
Provided equipment:
- Enclosure
- Door
- Front cover
- Pan assembly
- Earth terminal block 25 mm²
- Shielded neutral bar 25 mm²
Complementary:
Enclosure mounting: Surface
rated operational current: 125 A at 230/240 V AC
incomer device options:
- Switch disconnector - 2P
- Terminal block - 2P
- RCCB - 30 mA - 2P
- RCCB - 100 mA - 2P
- RCCB - 300 mA - 2P
protection device options:
- Miniature circuit breaker (MCB) (plug-on type) as outgoer
- Residual current circuit breaker with overcurrent protection (RCBO) (plug-on type) as outgoer
Number of ways: 16 ways (1P) outgoer
Cable entry:
- Top and bottom: knock-out
- side: knock-out
Height: 270 mm
Width: 456 mm
Depth: 127 mm

Environment:

IP degree of protection:
- IP2x B internal conforming to BS EN 60529
- IP3x external conforming to BS EN 60529
Data Sheet:
Click Here for Data Sheet
