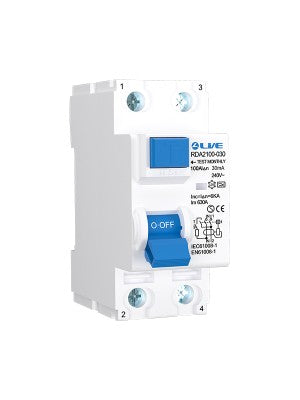

LIVE Electrical RDA2100-030 2 Pole 100A 30mA Type A High Immunity RCD

Name: LIVE Electrical RDA2100-030 2 Pole 100A 30mA Type A High Immunity RCD
Brand: LIVE Electrical
SKU: RDA2100-030
Price: 19.8 GBP
Availability: InStock

LIVE Electrical RDA2100-030 2 Pole 100A 30mA Type A High Immunity RCD

Availability:

IN STOCK

SKU RDA2100-030

£42.83

£42.83 - £42.83

£42.83

£16.50

Exc VAT

£19.80

Inc VAT

£19.80 - £19.80

£19.80

£16.50 - £16.50

£19.80

Product Description

Customer Reviews

LIVE Electrical RDA2100-030 2 Pole 100A 30mA Type A High Immunity RCD

Product Description

2 Pole Type A Residual Current Devices (RCD)

Specification:

Pole No.: 2
Rated current(A):100
Rated voltage: 240/415V AC
Rated frequency: 50/60Hz
Rated residual operating current I?(mA):30
Rated residual non operating current: 0.5I?n
Rated conditional breaking current Inc: 6000A
Tripping duration Instantaneous tripping?0.1s
Residual tripping current range:0.5I?n~l?n
Electro-mechanical endurance:4000cycles
Connection capacity Rigid conductor up to 25mm2

LIVE Electrical Catalogue:

Click Here for LIVE Electrical Catalogue:
