Collingwood SOL66N19D40 Solis New-Gen IP40 600x600mm UGR19 LED Panel, Non-Dimmable, 4000K, 27W-32W Wattage Switchable
Collingwood SOL66N19D40 Solis New-Gen IP40 600x600mm UGR19 LED Panel, Non-Dimmable, 4000K, 27W–32W Wattage Switchable
Product Overview

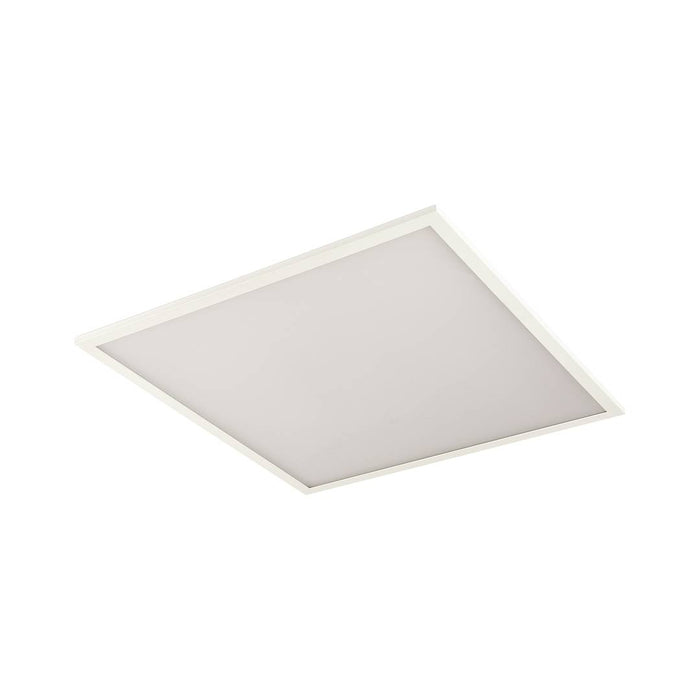

The Collingwood SOL66N19D40 Solis New-Gen LED Panel delivers high performance, visual comfort, and installation flexibility in a modern 600x600mm design. Featuring wattage switchable output (27W–32W) and UGR19 low-glare lighting, it provides optimal illumination for offices, classrooms, and commercial environments. Operating at 4000K (neutral white), the Solis panel produces up to 4200 lumens with outstanding efficiency of 130lm/W, ensuring bright, uniform, and energy-efficient light.
The Solis range is engineered with a robust back-lit design for improved durability and performance, making it ideal for suspended ceilings and retrofits. A TP(a) rated diffuser and 850°C glow wire test approval mean it’s suitable for use in fire escape routes. The luminaire includes a 2-part first-fit connector for quick installation and comes supplied with a 1m safety steel cable for secure mounting. With options for DALI-2, Push-Dim, and 0–10V dimming and emergency conversions, the Solis panel provides total flexibility for modern lighting systems.
Technical Specifications
- Wattage: Switchable 27W / 32W
- Luminous Flux: 3500–4200lm
- Efficacy: 130lm/W
- Colour Temperature: 4000K (Neutral White)
- UGR: ?19 (Low Glare)
- CRI: >80
- Beam Angle: 90°
- IP Rating: IP40
- IK Rating: IK02
- Input Voltage: 220–240V AC
- Power Factor: 0.9
- LED Lifetime: L80 50,000 hours
- Body Material: Iron
- Diffuser Rating: TP(a)
- Dimensions: 600 x 600 x 32 mm
- Operating Temperature: -30°C to +40°C
- Energy Class: D
- Mounting: Recessed (600x600 grid ceiling)
- Insulation Coverable: Luminaire - Yes; Driver - No
- Warranty: 5 Years (2 Years On-Site)
Features & Benefits
- UGR19 low-glare design: Comfortable illumination for office and educational spaces.
- Wattage switchable: Select between 27W and 32W depending on lux requirements.
- Back-lit panel: Enhances performance and durability during transport and installation.
- TP(a) diffuser and 850°C glow wire compliant: Safe for use in fire escape routes.
- Fast installation: Supplied with a 2-part first-fit connector and 1m safety steel cable.
- Optional dimming and control: Compatible with DALI-2, Push-Dim, and 0–10V systems.
- Emergency compatibility: Supports manual, self-test, and DALI emergency converters (LEDEP10).
- Blue Light Hazard Regulation RG0: Safe for prolonged visual tasks such as reading and computer work.
Typical Applications
- Offices and commercial buildings
- Classrooms and educational facilities
- Retail and healthcare environments
- Corridors and communal areas
