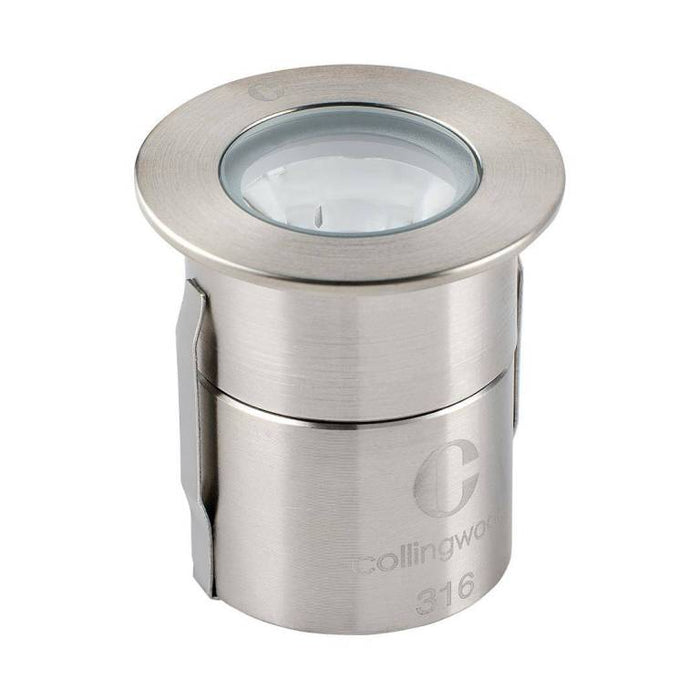

Collingwood GL019RSS30F GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Stainless Steel, 38 Degree Beam Angle, 3000K
Collingwood GL019RSS30F 0.4W–2.2W IP68 Low Voltage Ground Light, Stainless Steel, 38° Beam Angle, 3000K
Product Description
GL019 Round Low Voltage Ground Light
The Collingwood GL019RSS30F belongs to the upgraded GL019 modular ground light series, a versatile range that includes round, square, frosted, low-glare, half-moon, and ultra-low-glare variants. This LED ground light delivers both discretion and performance, making it ideal for illuminating pathways, decking, and entrances.
Built from premium 316 stainless steel and featuring an IP68 rating, this fitting offers long-lasting durability for both indoor and outdoor use, including coastal environments. Emitting a warm 3000K light at a 38° beam angle, the GL019RSS30F combines efficient illumination with elegant style — perfect for architectural, landscape, or ambient lighting designs.
Key Features & Benefits
- IP68 rated – suitable for both internal and external installations
- Coastal protected for superior corrosion resistance
- IK06 impact resistance – walk-over safe (Stainless Steel version only)
- Supplied with installation tube for simple setup
- Low voltage LED design for energy efficiency and safety
- SDCM3 ensures uniform and consistent light appearance
- CRI >80 for accurate and natural colour representation
- 3000K warm white light for comfortable, ambient illumination
- Compact yet powerful fitting ideal for subtle outdoor lighting
- Durable cable suitable for exterior environments
- Available in multiple finishes to suit your installation
Technical Specifications
| CRI | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk over |
| Tilt | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | 55°C |
| Cut-out Size | 33mm |
| Bathroom Zone | 0 |
| Electrical Class | III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 38° |
| CCT Range | 3000K |
| Luminous Efficacy | 95 – 129 lm/W |
| LED Lifetime | L70 70,000 hours |
| Material / Finish | Stainless Steel 316 |
| Warranty | 7 years |
| Energy Class | D |
| Luminous Output | 54 – 210 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40 × 40 × 41 mm |
| Adjustability | Not adjustable |
| Dimmable | No |
Product Data Sheet
For installation details, wiring diagrams, and full specifications, please download the official manufacturer data sheet below.
