Collingwood GL019RSS27S GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Stainless Steel, 12 Degree Beam Angle, 2700K

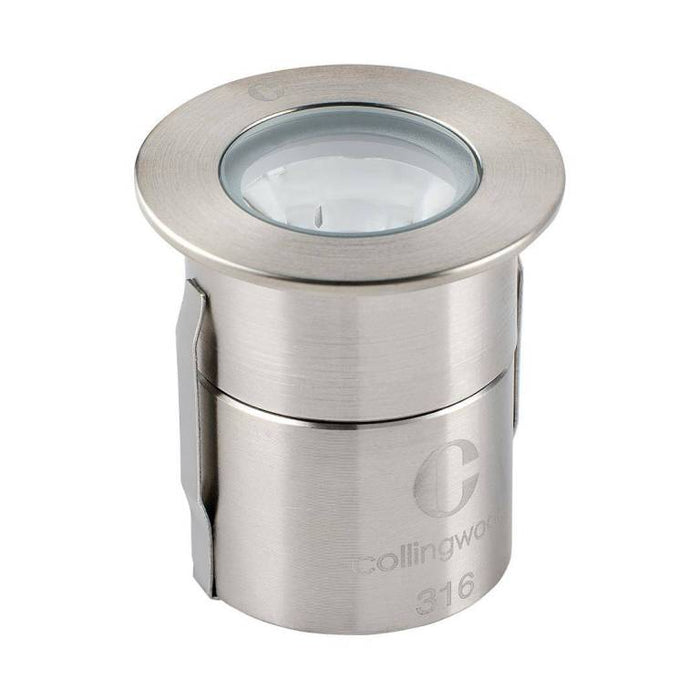

Collingwood GL019RSS27S 0.4W–2.2W IP68 Low Voltage Ground Light, Stainless Steel, 12° Beam Angle, 2700K
Product Description
GL019 Round Low Voltage Ground Light
The Collingwood GL019RSS27S forms part of the advanced GL019 modular ground light range, designed to offer outstanding flexibility and performance. This series includes a wide selection of options such as round, square, frosted, low-glare, half-moon, and ultra-low-glare models—each created to meet the demands of modern architectural and landscape lighting projects.
Compact yet exceptionally powerful, this LED ground light emits a focused 12° beam of warm 2700K light, making it ideal for illuminating pathways, steps, entrances, and decking areas. Constructed from premium 316 stainless steel and IP68 rated, it ensures long-lasting performance in both indoor and outdoor environments, including coastal locations. The GL019RSS27S delivers reliable, maintenance-free lighting for years of operation.
Key Features & Benefits
- IP68 rating – fully protected for internal and external applications
- Coastal protected for excellent corrosion resistance
- IK06 impact rating – walk-over safe (Stainless Steel only)
- Supplied with installation tube for easy fitting
- Low voltage LED light for safe, efficient operation
- SDCM3 for consistent and uniform colour output
- CRI >80 for true-to-life colour rendering
- 2700K warm white colour temperature for soft, inviting illumination
- Compact yet powerful design for subtle architectural lighting
- Robust outdoor-rated cable for reliable performance
- Available in multiple finishes to complement any design
Technical Specifications
| CRI | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk over |
| Tilt | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| CRI | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk over |
| Tilt | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | 55°C |
| Cut-out Size | 33mm |
| Bathroom Zone | 0 |
| Electrical Class | III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 12° |
| CCT Range | 2700K |
| Luminous Efficacy | 89 – 120 lm/W |
| LED Lifetime | L70 70,000 hours |
| Material / Finish | Stainless Steel 316 |
| Warranty | 7 years |
| Energy Class | D |
| Luminous Output | 51 – 169 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40 × 40 × 41 mm |
| Adjustability | Not adjustable |
| Dimmable | No |
Product Data Sheet
For detailed product specifications, wiring diagrams, and installation information, please refer to the official manufacturer’s data sheet below.
