Collingwood GL019RSS27F GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Stainless Steel, 38 Degree Beam Angle, 2700K
Collingwood GL019RSS27F 0.4W–2.2W IP68 Low Voltage Ground Light, Stainless Steel, 38° Beam Angle, 2700K
Product Description

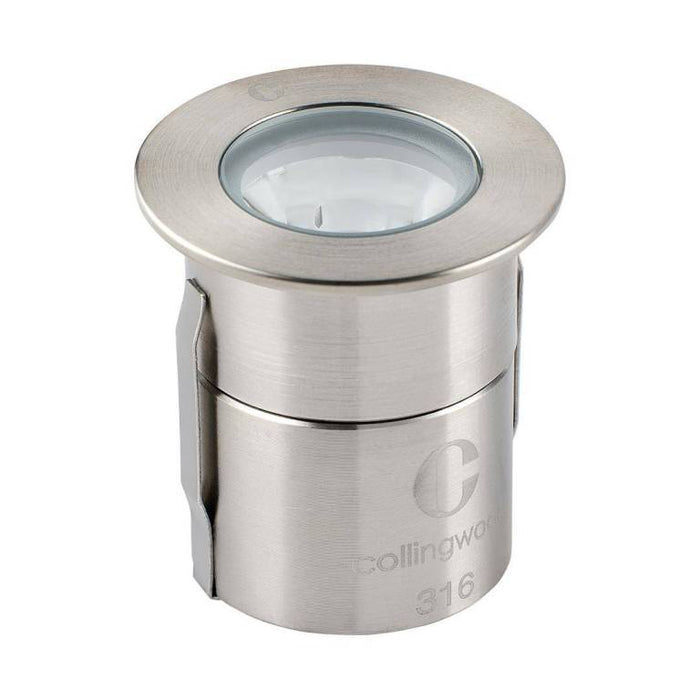

GL019 Round Low Voltage Ground Light
The Collingwood GL019RSS27F is part of the enhanced GL019 modular ground light range – engineered for flexibility, durability, and stylish performance. The collection offers multiple configurations including round, square, frosted, low-glare, half-moon, and ultra-low-glare options, ensuring the perfect fit for any architectural or landscape lighting project.
Delivering an elegant 38° beam of warm 2700K light, this LED ground light combines compact design with impressive brightness. Constructed from robust 316 stainless steel and rated IP68, it is ideal for both indoor and outdoor applications, including decking areas, driveways, entranceways, and pathways. With coastal protection and a long LED lifetime, it provides dependable, maintenance-free illumination for years to come.
Key Features & Benefits
- IP68 rating – suitable for internal and external installations
- Coastal protected for enhanced corrosion resistance
- IK06 impact protection – walk-over rated (Stainless Steel version only)
- Includes installation tube for easy fitting
- Low voltage LED ground light for efficient, safe performance
- SDCM3 ensures consistent and uniform light colour
- CRI >80 for true and accurate colour rendering
- 2700K warm white tone for a comfortable, inviting atmosphere
- Compact yet powerful design ideal for architectural or landscape use
- Durable, weather-resistant cable for outdoor applications
- Available in a variety of colour finishes
Technical Specifications
| CRI | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk over |
| Tilt | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | 55°C |
| Cut-out Size | 33mm |
| Bathroom Zone | 0 |
| Electrical Class | III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 38° |
| CCT Range | 2700K |
| Luminous Efficacy | 89 – 120 lm/W |
| LED Lifetime | L70 70,000 hours |
| Material / Finish | Stainless Steel 316 |
| Warranty | 7 years |
| Energy Class | D |
| Luminous Output | 51 – 169 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40 × 40 × 41 mm |
| Adjustability | Not adjustable |
| Dimmable | No |
Product Data Sheet
For full product specifications, wiring details, and installation guidance, please refer to the manufacturer’s official document below.
