Collingwood GL019RSS22F GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Stainless Steel, 38 Degree Beam Angle, 2200K

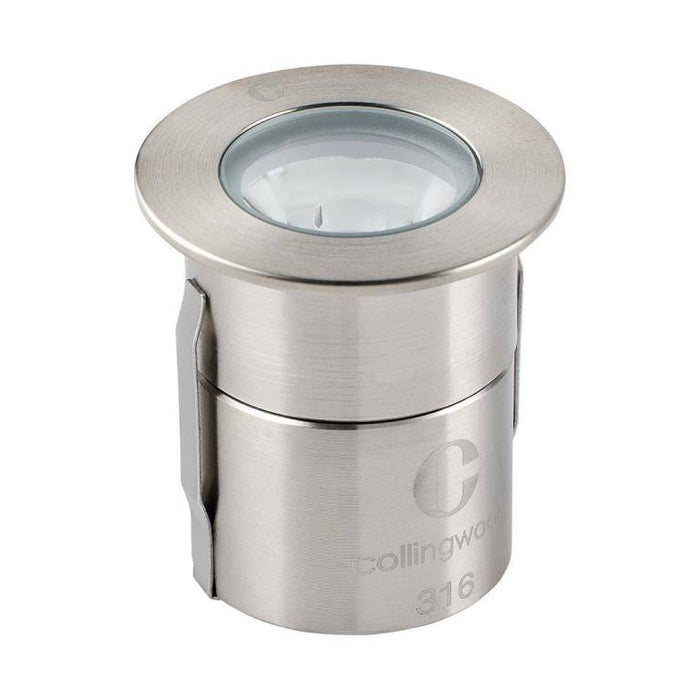

Collingwood GL019RSS22F 0.4W–2.2W IP68 Low Voltage Ground Light, Stainless Steel, 38° Beam Angle, 2200K
Product Description
GL019 Round Low Voltage Ground Light
The Collingwood GL019RSS22F is part of the upgraded GL019 modular ground light range, designed for exceptional performance and versatility. Available in round, square, frosted, low-glare, half-moon, and ultra-low-glare variations, this compact LED ground light delivers powerful illumination while maintaining a discreet appearance.
Perfect for decking areas, pathways, entrance halls, or architectural accents, the IP68 stainless steel construction ensures long-lasting reliability, even in coastal or challenging outdoor environments. Indoors or outdoors, this ground light provides flawless, maintenance-free operation and a warm 2200K ambience ideal for subtle, inviting lighting effects.
Key Features & Benefits
- IP68 rating – suitable for both indoor and outdoor applications
- Coastal protected for enhanced durability in marine environments
- IK06 impact resistance – walk-over rated (Stainless Steel version only)
- Supplied with installation tube for easy setup
- Low voltage LED ground light for safe and efficient operation
- SDCM3 for consistent and uniform light colour
- CRI >80 for accurate colour rendering and true visual appearance
- 2200K colour temperature for a warm, cosy glow with minimal disturbance to wildlife
- Compact yet powerful design ideal for subtle architectural lighting
- Durable cable suitable for outdoor installations
- Available in a variety of finishes and colour options
Technical Specifications
| CRI | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk over |
| Tilt | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | 55°C |
| Cut-out Size | 33mm |
| Bathroom Zone | 0 |
| Electrical Class | III |
| Coastal Suitable | Yes |
| Beam Angle | 38° |
| CCT Range | 2200K |
| Luminous Efficacy | 89 – 120 lm/W |
| LED Lifetime | L70 70,000 hours |
| Material / Finish | Stainless Steel 316 |
| Warranty | 7 years |
| Energy Class | D |
| Output | 51 – 169 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40 × 40 × 41 mm |
| Adjustability | Not adjustable |
| Dimmable | No |
Product Data Sheet
For detailed installation and performance data, please refer to the manufacturer’s official documentation below.
