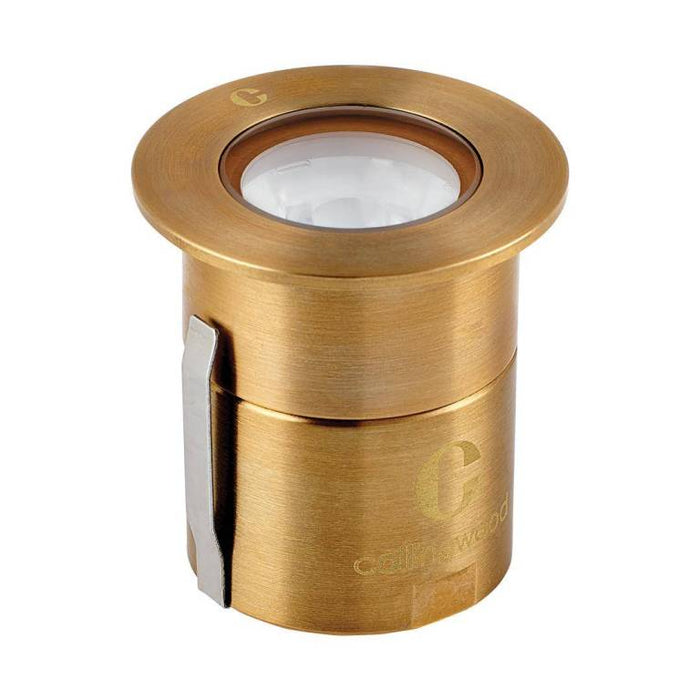

Collingwood GL019RAB30F GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Antique Brass, 38 Degree Beam Angle, 3000K
Collingwood GL019RAB30F 0.4W–2.2W IP68 Low Voltage Ground Light, Antique Brass, 38° Beam Angle, 3000K
Product Description
The Collingwood GL019RAB30F is a premium round, low-voltage LED ground light engineered for long-term performance. Part of the upgraded GL019 modular range, it supports multiple configurations across the series — including round, square, frosted, low-glare, half-moon and ultra-low-glare options — to suit residential and commercial applications.
Discreet yet powerful, this IP68-rated fitting delivers reliable illumination for decking, pathways, entrances and landscaping. The 3000K warm white output provides welcoming ambience, while the Antique Brass finish adds a refined architectural touch. Designed for indoor or outdoor use, it offers years of maintenance-free operation.
Features & Benefits
- IP68 protection for permanent outdoor use and internal wet areas
- Coastal protected for durability in seaside environments
- IK06 impact resistance — suitable for walk-over installations (stainless steel variants rated walk-over)
- Supplied with an installation tube for fast, secure fitting
- Low-voltage LED design for safety and energy efficiency
- SDCM3 for uniform, consistent light appearance
- CRI 80+ for natural, accurate colour rendering
- 3000K warm white for comfortable, high-quality ambience (other CCT options available across the range)
- Compact, robust construction with outdoor-grade cabling
- Available in a choice of stylish finishes to complement your scheme
Technical Specifications
| Colour Rendering Index (CRI) | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk Over |
| Tiltable | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | Up to 55°C |
| Cut-Out Size | 33mm |
| Bathroom Zone | Zone 0 |
| Electrical Class | Class III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 38° |
| Colour Temperature (CCT) | 3000K |
| Luminous Efficacy | 95–129 lm/W |
| LED Lifetime | L70 70,000 hours |
| Finish | Antique Brass |
| Body Material | Brass |
| Warranty | 7 Years |
| Energy Class | D |
| Luminous Flux | 54–210 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40mm × 40mm × 41mm |
| Adjustability | Not Adjustable |
| Dimmable | No |
Data Sheet: Download Product Data Sheet
