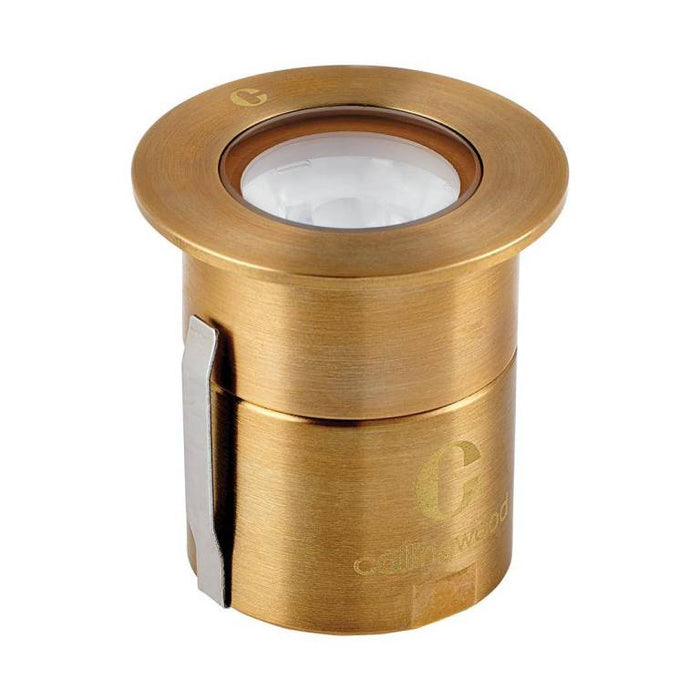

Collingwood GL019RAB27S GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Antique Brass, 12 Degree Beam Angle, 2700K
Collingwood GL019RAB27S 0.4W–2.2W IP68 Low Voltage Ground Light, Antique Brass, 12° Beam Angle, 2700K
Product Description
The Collingwood GL019RAB27S is a precision-engineered, round, low-voltage LED ground light designed for architectural, residential, and commercial use. As part of the advanced GL019 modular series, it offers multiple configuration options including round, square, frosted, low-glare, half-moon, and ultra-low-glare styles — providing unmatched versatility for any lighting project.
Compact yet powerful, this fixture is perfect for illuminating decking, pathways, entrances, and exterior façades. With its IP68 rating and robust Antique Brass construction, it ensures long-lasting, maintenance-free performance in both indoor and outdoor environments. The 2700K warm white output creates a comfortable and inviting atmosphere.
Features & Benefits
- IP68 rated for full protection in both internal and external applications
- Coastal protected for use in marine and seaside environments
- IK06 impact resistance — suitable for walk-over applications (stainless steel versions)
- Supplied with an installation tube for quick and secure fitting
- Low-voltage LED design ensures safety and energy efficiency
- SDCM3 guarantees consistent and uniform light output
- CRI 80 delivers accurate and natural colour representation
- Warm 2700K light temperature enhances ambience and visual comfort
- Compact yet high-performance design with durable outdoor cabling
- Available in a range of stylish finishes to complement any design
Technical Specifications
| Colour Rendering Index (CRI) | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk Over |
| Tiltable | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | Up to 55°C |
| Cut-Out Size | 33mm |
| Bathroom Zone | Zone 0 |
| Electrical Class | Class III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 12° |
| Colour Temperature (CCT) | 2700K |
| Luminous Efficacy | 89–120 lm/W |
| LED Lifetime | L70 70,000 hours |
| Finish | Antique Brass |
| Body Material | Brass |
| Warranty | 7 Years |
| Energy Class | D |
| Lumens Output | 51–169 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40mm × 40mm × 41mm |
| Adjustability | Not Adjustable |
| Dimmable | No |
Data Sheet: Download Product Data Sheet
