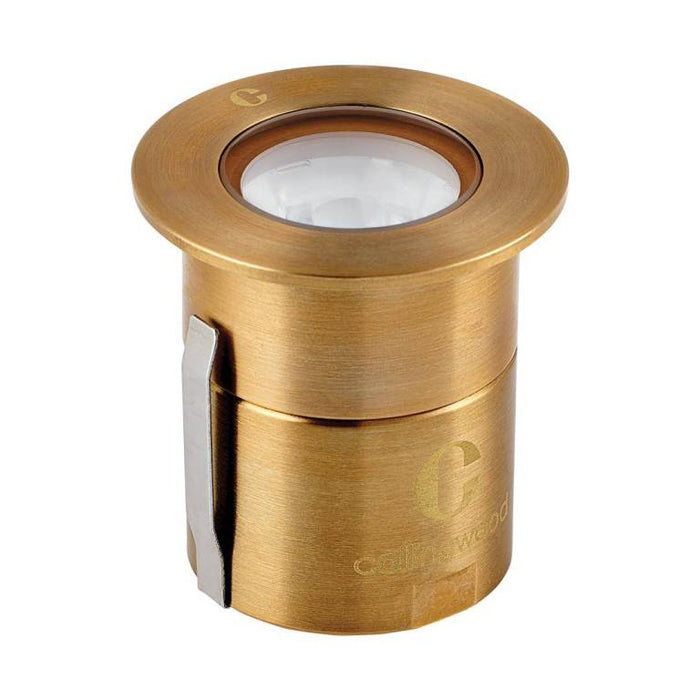

Collingwood GL019RAB27F GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Antique Brass, 38 Degree Beam Angle, 2700K
Collingwood GL019RAB27F 0.4W–2.2W IP68 Low Voltage Ground Light, Antique Brass, 38° Beam Angle, 2700K
Product Description
The Collingwood GL019RAB27F is a premium round low-voltage ground light, expertly crafted to deliver reliable, high-quality illumination. As part of the enhanced GL019 modular range, it offers a variety of design options including round, square, frosted, low glare, half-moon, and ultra-low glare configurations — providing flexibility for both residential and commercial lighting projects.
Designed for long-term durability, this IP68-rated LED ground light is ideal for both indoor and outdoor use, including pathways, decking areas, entrance halls, and landscaping applications. With a warm 2700K colour temperature and Antique Brass finish, it creates an inviting ambience while maintaining a sleek, architectural appearance.
Features & Benefits
- IP68 rated for superior protection in internal and external environments
- Coastal protected for longevity in seaside installations
- IK06 impact resistance – suitable for walk-over use (stainless steel variants)
- Supplied with installation tube for quick and simple fitting
- Low-voltage LED design ensures energy efficiency and safety
- SDCM3 for consistent and uniform light appearance
- CRI 80 for true and natural colour rendering
- Warm 2700K colour temperature creates a soft, comfortable atmosphere
- Compact yet powerful fitting with robust outdoor-grade cable
- Available in a range of stylish colour finishes
Technical Specifications
| Colour Rendering Index (CRI) | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk Over |
| Tiltable | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | Up to 55°C |
| Cut-Out Size | 33mm |
| Bathroom Zone | Zone 0 |
| Electrical Class | Class III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 38° |
| Colour Temperature (CCT) | 2700K |
| Luminous Efficacy | 89–120 lm/W |
| LED Lifetime | L70 70,000 hours |
| Finish | Antique Brass |
| Body Material | Brass |
| Warranty | 7 Years |
| Energy Class | D |
| Lumens Output | 51–169 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40mm × 40mm × 41mm |
| Adjustability | Not Adjustable |
| Dimmable | No |
Data Sheet: Download Product Data Sheet
