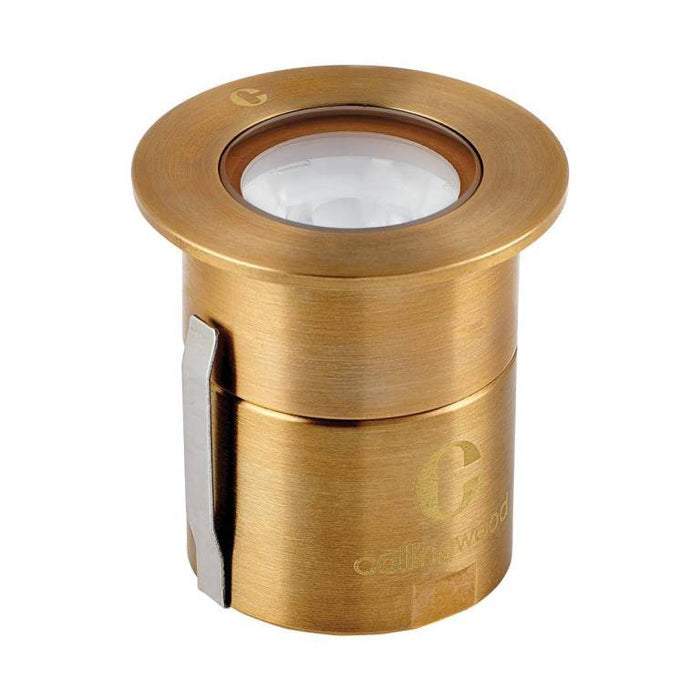

Collingwood GL019RAB22F GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Antique Brass, 38 Degree Beam Angle, 2200K

Collingwood GL019RAB22F GL019 0.4W–2.2W IP68 Low Voltage Ground Light, Antique Brass, 38° Beam Angle, 2200K

Product Description

The Collingwood GL019RAB22F is part of the enhanced GL019 modular ground light range, designed for versatility, performance, and aesthetics. Available in multiple styles — including round, square, frosted, low glare, half moon, and ultra-low glare — it delivers adaptable lighting solutions for any project.

Combining discreet design with powerful LED performance, this Antique Brass low voltage ground light is ideal for decking, pathways, entrances, and architectural features. Its IP68 rating guarantees long-lasting reliability indoors or outdoors, even in coastal or harsh environments.

Features & Benefits

• IP68 rated – suitable for both internal and external applications
• Coastal protection for marine and seaside environments
• IK06 impact protection – walk-over rated (Stainless Steel version only)
• Supplied with installation tube for quick and secure setup
• Low voltage design ensures safety and energy efficiency
• SDCM3 for consistent and uniform light output
• CRI 80 for true and natural colour rendering
• 2200K warm light ideal for soft, ambient illumination with minimal wildlife disruption
• Compact yet powerful construction for subtle architectural lighting
• Durable outdoor cable designed for long-term use
• Available in a selection of colours and finishes to suit any project

Technical Specifications

• CRI: >80
• IP Rating: IP68
• IK Rating: IK06
• Walk Over / Drive Over: Walk over
• Tiltable: Fixed
• Input: 150mA / 250mA / 350mA / 500mA / 700mA DC
• Ambient Temperature: up to 55°C
• Cut-Out: 33mm
• Bathroom Zone: 0
• Electrical Class: III
• Suitable for Coastal Areas: Yes
• Beam Angle: 38°
• Colour Temperature: 2200K
• Efficiency: 89–120 lm/W
• LED Lifetime: L70 70,000 hours
• Material: Brass
• Finish: Antique Brass
• Wattage & Lumens: 0.4W–2.2W | 51–169 lm
• Dimensions (mm): 40 × 40 × 41
• Energy Class: D
• Warranty: 7 years

Downloads

Data Sheet:

Click Here for Data Sheet
