Product Overview

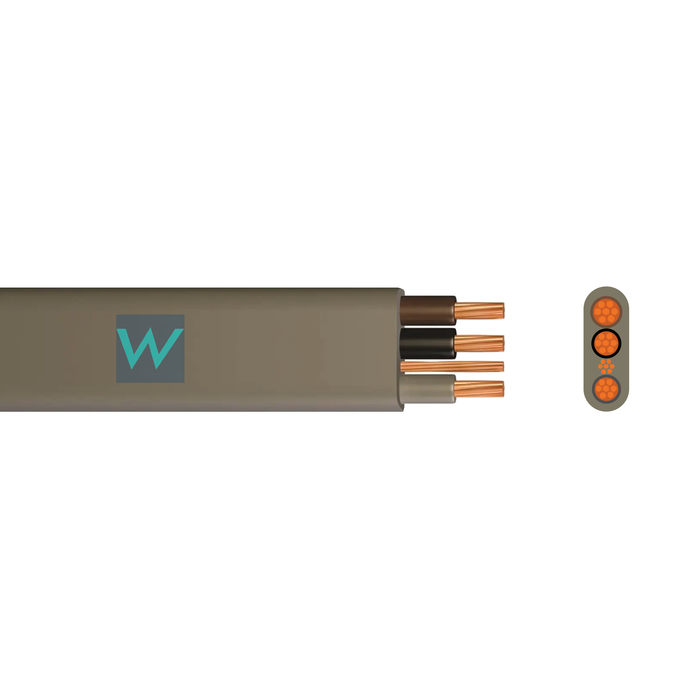

The 6243Y 3 Core & Earth 1.5mm² PVC Cable is a robust and versatile domestic wiring cable designed for higher-load two-way lighting circuits and general fixed wiring applications. It can be installed in dry or damp environments and is suitable for use clipped to surfaces, laid on trays, or in free air where mechanical damage is unlikely. When additional protection is required, it can be safely installed within conduit or trunking.

Manufactured to the BS 6004:2012 standard and BASEC approved, this high-quality cable ensures reliable performance and safety. It features a flat-profile PVC sheath with copper conductors for excellent durability and conductivity. Fully CE marked and ISO 9001 certified, it’s ideal for use in domestic and light commercial installations.

Key Features

• Type: 3 Core & Earth PVC Cable (6243Y)
• Conductor Size: 1.5mm²
• Cable Length: 10m drum
• Application: Designed for higher-load two-way lighting and general fixed wiring.
• Installation: Suitable for clipping to surfaces, mounting on trays, or installation within conduit/trunking.
• Outer Sheath Colour: Grey
• Core Colours: Brown, Black, and Grey (with bare Earth conductor).
• Material: PVC sheath and insulation with copper conductors.
• Cable Profile: Flat for easy and tidy installation.
• Current Rating: 16A
• Resistance: 12.1 Ω/km
• Standard: BS 6004:2012
• Certifications: CE Marked, BASEC Approved, ISO 9001 Certified

Typical Applications

The 6243Y 1.5mm² 3 Core & Earth Cable is ideal for higher-load 2-way lighting circuits and general fixed wiring installations in residential and light commercial environments. Its durable, flexible, and easy-to-handle design makes it suitable for a variety of domestic wiring tasks.
