6243Y 3 Core & Earth PVC 1.0mm Grey Cable - 25m

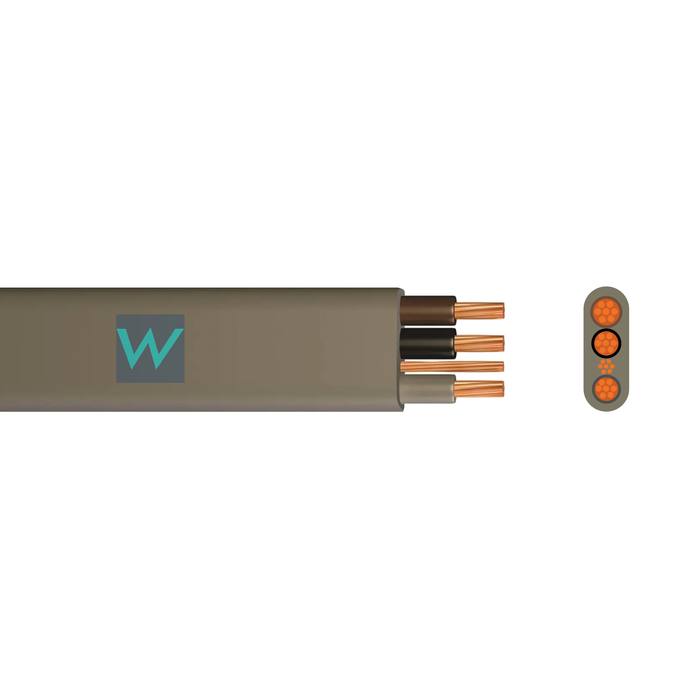

6243Y 3 Core & Earth PVC 1.0mm² Grey Cable – 25m Drum
Product Overview
The 6243Y 3 Core & Earth 1.0mm² PVC Cable is a trusted and durable domestic wiring cable designed for use in 2-way lighting circuits and fixed electrical installations. It is suitable for installation in both dry and damp environments, and can be clipped to surfaces, mounted on trays, or installed in free air where there is minimal risk of mechanical damage. For additional safety, it may also be enclosed within conduit or trunking where extra protection is required.
This cable is fully compliant with BS 6004:2012 and carries BASEC approval, ensuring quality, reliability, and safety in accordance with UK standards. Its flat-profile PVC sheath and flexible construction make it easy to install, ideal for residential lighting applications and general electrical wiring.
Key Features
- Type: 3 Core & Earth PVC Cable (6243Y)
- Conductor Size: 1.0mm²
- Cable Length: 25m drum
- Application: Suitable for standard 2-way lighting circuits and fixed domestic wiring systems.
- Installation: Can be clipped to surfaces, laid on trays, or installed within conduit or trunking for protection.
- Outer Sheath Colour: Grey
- Core Colours: Brown, Black, and Grey (with bare Earth conductor).
- Material: Copper conductors with PVC insulation and sheath.
- Cable Profile: Flat, for compact and efficient installation.
- Current Rating: 13A
- Resistance: 18.1 Ω/km
- Standard: BS 6004:2012
- Certifications: CE Marked, BASEC Approved, ISO 9001 Certified
Typical Applications
The 6243Y 1.0mm² 3 Core & Earth Cable is ideal for use in domestic two-way lighting circuits and other fixed electrical wiring installations. Commonly used in residential settings, it provides reliable performance and easy installation for lighting and control systems.
