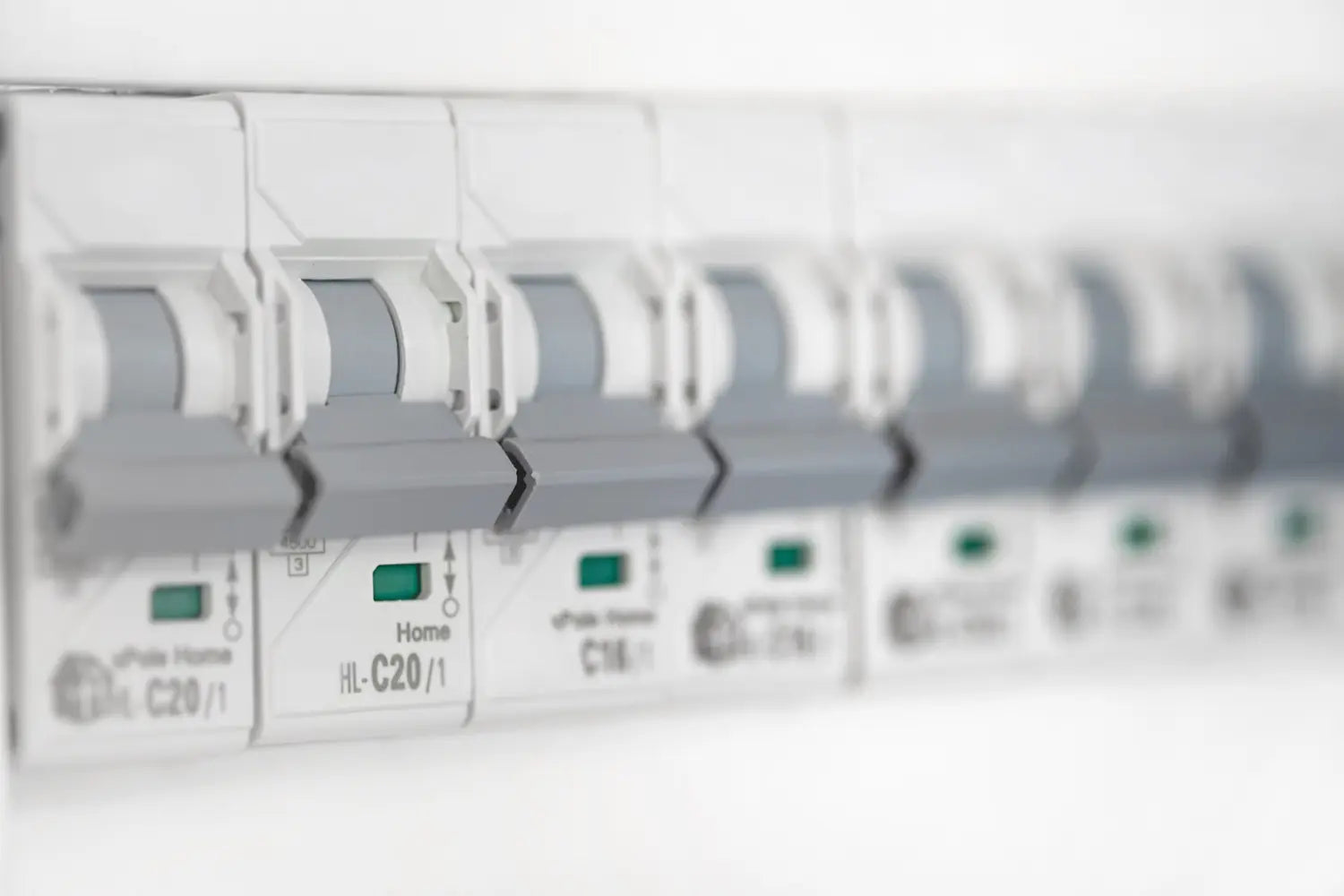

MCB vs RCD vs RCBO: Understanding the Differences and Choosing the Right Protection for Your Home

When working with electrical installations in the UK, understanding the differences between MCBs, RCDs, and RCBOs is essential for both safety and compliance with BS 7671 wiring regulations. These protective devices are fundamental components in modern consumer units, but they serve different purposes. In this guide, we'll break down what each device does, how they differ, and help you determine which ones you need for your installations.

What is an MCB?

A Miniature Circuit Breaker (MCB) is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current, typically from an overload or short circuit.

How MCBs Work

MCBs detect overcurrent conditions through two mechanisms:

Thermal protection: A bimetallic strip heats up and bends when excessive current flows for a sustained period, eventually triggering the breaker to trip. This protects against overload conditions.

Magnetic protection: A solenoid creates a magnetic field when very high currents flow (such as during a short circuit), instantly tripping the breaker.

Key Features of MCBs

• Protect cables and equipment from overheating due to overload
• Provide short circuit protection
• Available in various current ratings (6A, 10A, 16A, 32A, etc.)
• Come in different trip curves (Type B, C, and D) for different applications
• Can be reset manually after tripping
• Do not provide earth fault or shock protection

Many installers now choose compact RCBO devices to save space in consumer units while still providing full overload, short circuit, and earth fault protection.

When to Use MCBs

MCBs are suitable for circuits where earth fault protection is already provided elsewhere in the installation, such as by an upstream RCD. They're commonly used for:

• Lighting circuits
• Power circuits in commercial installations with dedicated earth fault protection
• Motor circuits requiring specific overload characteristics

What is an RCD?

A Residual Current Device (RCD) is a life-saving device designed to protect people from electric shock and to reduce the risk of electrical fires caused by earth faults.

How RCDs Work

An RCD constantly monitors the balance of current flowing through the live and neutral conductors. Under normal conditions, these should be equal. If an earth fault occurs (such as when current leaks to earth through a person touching a live part), the RCD detects the imbalance and disconnects the circuit typically within 40 milliseconds.

Key Features of RCDs

• Protect against electric shock and electrocution
• Detect earth leakage currents
• Provide protection against electrical fires caused by earth faults
• Available in different sensitivities (typically 30mA for socket outlets and 100mA for fire protection)
• Trip when residual current exceeds the rated sensitivity
• Do not provide overload or short circuit protection

Types of RCDs

Fixed RCDs: Installed in the consumer unit and protect entire circuits or groups of circuits.

Socket outlet RCDs: Built into socket outlets for localised protection.

Portable RCDs: Plug-in devices that can be used with any socket outlet.

When to Use RCDs

BS 7671 regulations require RCD protection in various situations, including:

• All socket outlets rated at 20A or less that could reasonably be expected to supply portable equipment outdoors
• Cables buried less than 50mm deep in walls or partitions
• All circuits in bathrooms and shower rooms
• Mobile equipment used outdoors
• Circuits supplying equipment in zones where increased shock risk exists

What is an RCBO?

A Residual Current Breaker with Overload protection (RCBO) combines the functions of both an MCB and an RCD in a single device.

How RCBOs Work

An RCBO provides three types of protection simultaneously:

1. Overload protection (like an MCB)
2. Short circuit protection (like an MCB)
3. Earth fault protection (like an RCD)

This triple protection makes RCBOs incredibly versatile and increasingly popular in modern electrical installations.

Key Features of RCBOs

• Combine MCB and RCD functionality in one device
• Protect individual circuits independently
• Save space in consumer units
• Prevent nuisance tripping affecting multiple circuits
• Available in various current ratings and trip curves
• Typically feature 30mA residual current sensitivity

When to Use RCBOs

RCBOs are ideal for:

• Modern consumer unit installations where individual circuit protection is preferred
• Critical circuits that should remain operational even if other circuits trip
• Installations where space in the consumer unit is limited
• Socket outlet circuits requiring both overload and earth fault protection
• Any circuit where you want to maximise safety and convenience

MCB vs RCD vs RCBO: The Key Differences

Which Configuration Should You Choose?

Traditional RCD Board Configuration

In a traditional split-load consumer unit, you might have:

• A main switch
• One or two RCDs protecting groups of MCBs
• Several MCBs for individual circuits

Advantages: Lower initial cost, fewer devices required.

Disadvantages: If the RCD trips, multiple circuits are affected simultaneously, making fault-finding more difficult.

Modern RCBO Configuration

In a high-integrity consumer unit, you might have:

• A main switch
• Individual RCBOs for each circuit requiring RCD protection
• MCBs for circuits not requiring RCD protection (if any)

Advantages: Individual circuit protection means only the faulty circuit trips, better fault discrimination, easier troubleshooting.

Disadvantages: Higher initial cost, requires more devices.

Current Best Practice

The 18th Edition of BS 7671 and Amendment 2 have further extended the requirements for RCD protection. Current best practice for new installations typically involves:

• Using RCBOs for all socket outlet circuits
• Using RCBOs for circuits in special locations (bathrooms, outdoor circuits)
• Using RCBOs or ensuring RCD protection for circuits with cables concealed in walls
• Considering individual RCBO protection for most circuits to improve reliability and ease of fault-finding

Many professional electricians now prefer all-RCBO consumer units for new installations and consumer unit replacements, as they offer maximum protection and convenience despite the higher initial cost.

Choosing the Right Devices from West Base Direct

When selecting MCBs, RCDs, or RCBOs for your installations, consider:

Current rating: Match the device to the circuit load and cable size.

Type of protection required: Does the circuit need earth fault protection?

Trip characteristics: Type B for general lighting and power, Type C for circuits with inductive loads, Type D for circuits with high inrush currents.

RCD type: Type A RCDs are now often required for circuits supplying equipment with electronic components. Type B may be necessary for electric vehicle charging points.

Brand and quality: Ensure devices meet BS EN standards and carry appropriate certifications.

Space available: Consider whether you have room for multiple devices or need compact solutions.

Conclusion

Understanding the differences between MCBs, RCDs, and RCBOs is crucial for designing safe, compliant, and reliable electrical installations. While MCBs protect against overload and short circuits, RCDs protect against earth faults and electric shock. RCBOs combine both functions, offering comprehensive protection in a single device.

For modern installations, RCBOs are increasingly becoming the preferred choice due to their superior protection, improved fault discrimination, and convenience, despite their higher initial cost. When planning your next installation or consumer unit upgrade, consider the long-term benefits of individual circuit protection.

At West Base Direct, we stock a comprehensive range of MCBs, RCDs, and RCBOs from leading manufacturers to meet all your installation needs. Whether you're working on a domestic rewire or a commercial project, we have the quality protective devices you need at competitive trade prices.

Need help selecting the right protective devices for your project? Contact our technical team who can provide expert advice tailored to your specific requirements.
